3.2V 100ah Lifepo4 Battery Prismatic Cells Grade A Built In PCM / BMS
| Place of Origin: | Guangdong, China |
| Brand Name: | Mottcell |
| Certification: | CE/ROHS/ISO/UN38.3 |
| Model Number: | 3.2v 200ah |
| Minimum Order Quantity: | 100 pieces |
| Price: | $90.00/pieces 100-2999 pieces |
| Packaging Details: | Neutral Hard Cartons, wooden box , plastic pallet |
|
Detail Information |
|||
| Place of Origin | Guangdong, China | Brand Name | Mottcell |
|---|---|---|---|
| Certification | CE/ROHS/ISO/UN38.3 | Model Number | 3.2v 200ah |
| Battery Type: | LiFePO4 | Type: | LiFePO4 |
| Weight: | 4.2kg | Warranty: | 24 Months |
| Application: | EV/e-bike/UPS/electrical Car/solar Energy | Color: | Bule |
| Brand: | Mottcell | Battery Cell: | A- Grade |
| High Light: | 100ah Lifepo4 Battery Prismatic Cells,3.2V Lifepo4 Battery Prismatic Cells,3.2V Lifepo4 Prismatic Battery Cell |
||
Product Description

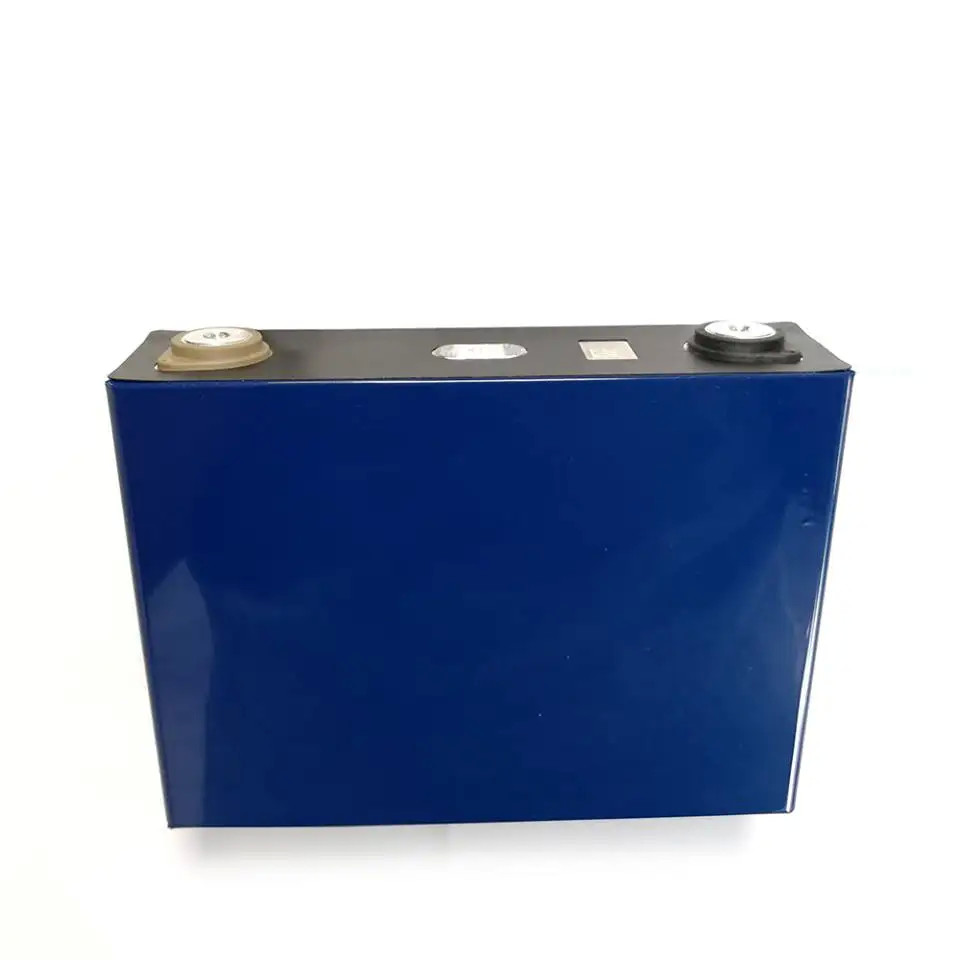

3.2V 100ah Lifepo4 Prismatic Battery Cell
Specification
|
Battery Type |
LiFePO4 |
|
Nominal Voltage |
3.2V |
|
Nominal Capacity |
100ah |
|
Internal Resistance |
≤5mΩ |
|
Limited Charge Voltage |
3.65V |
|
Charge Method |
CC/CV |
|
Discharge Cut-off Voltage |
2.3V |
|
Max. Charge Current |
1C |
|
Max. Continuous Discharge Current (<30min) |
1C |
|
Pulse Discharge Current (<3s) |
2C |
|
Cycle Life |
> 3000 cycles |
|
Dimension |
Thickness: 54mm |
|
Width: 174mm |
|
| Length: 207mm | |
|
Weight |
4220g |
|
Operation Temperature Range |
Charge: 0~45℃; |
|
Discharge: -20~60℃ |
|
|
Recommended operating temperature: 15℃~35℃ |
|
|
Self-Discharge Rate |
Residual capacity: ≤5%/month; |
Features
1. Safety: safest Li-Ion battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 3000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 5% monthly
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
