Cell_Shenzhen Mottcell New Energy Technology Co., Ltd.

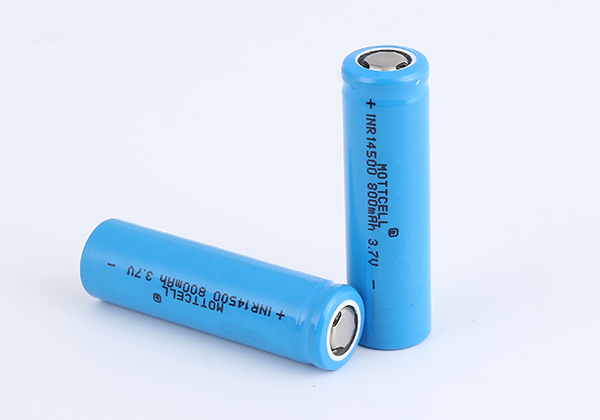

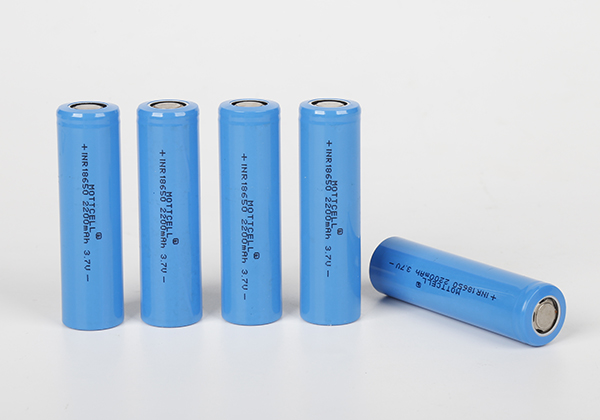

3.7V battery cell

High-energy 3.7V NMC cylindrical cell for tools, e-bikes, and electronics. Low self-discharge, customizable—built for performance-driven devices.

Model	Voltage (V）	Capacity(mAh)	Dimensions (mm) Diameter Height		Recommended Charge Current (mA)	Recommended Discharge Current (mA)	Max Discharge Current (mA)	Charge Cut-off Voltage (V)	Discharge Cut-off Voltage (V)	Weight (g）	Cycle life (DOD 80%)
ICR10440P	3.7	300	10.1±0.3	43.9±0.3	150	60	1500	4.2	2.75	9	≥500
ICR14250	3.7	280	14.1±0.3	24.2±0.3	140	56	840	4.2	2.75	8	≥500
ICR18350P	3.7	900	18.1±0.2	35.5±0.3	450	180	4800	4.2	2.75	23	≥500
INR10440	3.7	300	10.2±0.3	43.9±0.3	150	60	900	4.2	2.75	9	≥500
INR10440	3.7	350	10.2±0.3	43.9±0.3	175	70	1050	4.2	2.75	9	≥500
INR10440J	3.7	300	10.2±0.3	44.8±0.3	150	60	900	4.2	2.75	9.5	≥500
INR10440J	3.7	350	10.2±0.3	44.8±0.3	175	70	1050	4.2	2.75	9.5	≥500
INR14430	3.7	600	14.1±0.2	42.7±0.3	300	120	1800	4.2	2.75	18	≥500
INR14430	3.7	650	14.1±0.2	42.7±0.3	325	130	1950	4.2	2.75	18	≥500
INR14430	3.7	850	14.1±0.2	42.7±0.3	425	170	2550	4.2	2.75	17	≥500
INR14500	3.7	600	14.1±0.3	49.7±0.3	300	120	1800	4.2	2.75	20	≥500
INR14500	3.7	700	14.1±0.3	49.7±0.3	350	140	2100	4.2	2.75	20	≥500
INR14500	3.7	800	14.1±0.3	49.7±0.3	400	160	2400	4.2	2.75	20	≥500
INR14500	3.7	1000	14.1±0.3	49.7±0.3	500	200	3000	4.2	2.75	23	≥500
INR14500	3.7	1200	14.1±0.3	49.7±0.3	600	240	3600	4.2	2.5	24	≥500
INR14650	3.7	1200	14.1±0.3	64.5±0.3	600	240	3600	4.2	2.75	27.7	≥500
INR16340	3.7	700	16.4±0.3	34.0±0.3	350	140	2100	4.2	2.75	19	≥500
INR16340J	3.7	700	16.4±0.3	35.0±0.3	350	140	2100	4.2	2.75	19	≥500
INR18350	3.7	900	18.1±0.3	35.5±0.3	450	180	2700	4.2	2.75	23	≥500
ICR18350P	3.7	900	18.1±0.2	35.5±0.3	450	180	4800	4.2	2.75	23	≥500
INR18500	3.7	1600	18.2±0.3	49.9±0.3	800	320	4800	4.2	2.75	33	≥500
INR18500	3.7	2000	18.2±0.3	49.9±0.3	1000	400	6000	4.2	2.75	33	≥500
INR18500	3.7	2400	18.2±0.3	49.9±0.3	1200	480	7200	4.2	2.5	33	≥500
INR18650	3.7	1800	18.1±0.3	65.0±0.4	900	360	5400	4.2	2.75	41.5	≥500
INR18650	3.7	2000	18.1±0.3	65.0±0.4	1000	400	6000	4.2	2.75	42	≥500
INR18650	3.7	2200	18.1±0.3	65.0±0.4	1100	440	6600	4.2	2.75	42	≥500
INR18650	3.7	2600	18.3±0.3	65.0±0.4	1300	520	7800	4.2	2.75	50	≥500
INR18650	3.7	2900	18.3±0.3	65.0±0.4	1450	580	8700	4.2	2.75	50	≥500
INR18650	3.7	3000	18.3±0.3	65.0±0.4	1500	600	9000	4.2	2.75	50	≥500
INR18650	3.7	3200	18.3±0.3	65.0±0.4	1600	640	9600	4.2	2.5	50	≥500
INR18650	3.7	3300	18.3±0.3	65.0±0.4	1650	660	9900	4.2	2.5	50	≥500
INR18650	3.7	3500	18.3±0.3	65.0±0.4	1750	700	10500	4.2	2.5	50	≥500
INR21700	3.7	4000	21.5±0.3	70.8±0.4	2000	800	12000	4.2	2.75	71	≥500
INR21700	3.7	4500	21.5±0.3	70.8±0.4	2250	900	13500	4.2	2.5	71	≥500
INR21700	3.7	5000	21.5±0.3	70.8±0.4	2500	1000	15000	4.2	2.5	71	≥500

Learn More

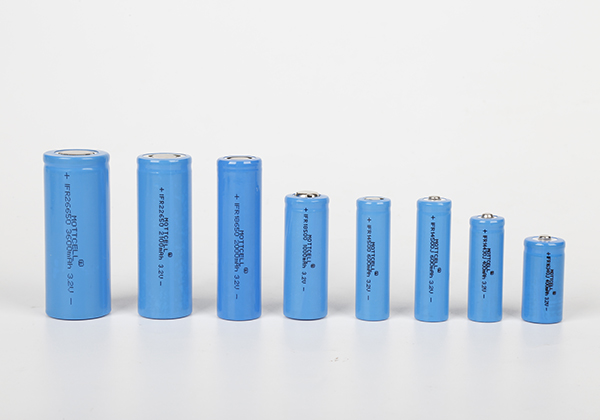

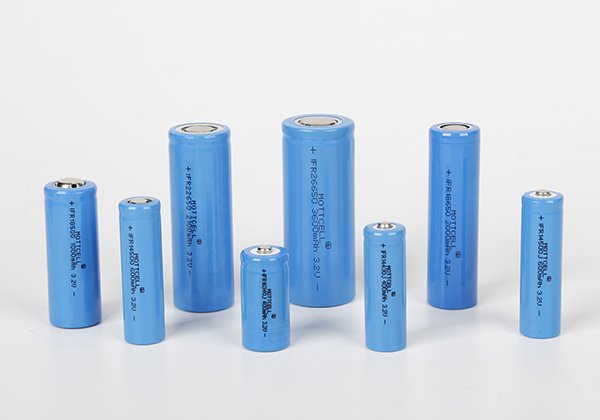

3.2V battery cell

3.2V LFP cylindrical cell with enhanced safety. Ideal for high-discharge applications like ESS modules and starter batteries—energy meets endurance.

Model	Voltage (V）	Capacity(mAh)	Dimensions (mm) Diameter Height		Recommended Charge Current (mA)	Recommended Discharge Current (mA)	Max Discharge Current (mA)	Charge Cut-off Voltage (V)	Discharge Cut-off Voltage (V)	Weight (g）	Cycle life (DOD 70%)
IFR10440	3.2	200	10.1±0.3	43.8±0.3	100	40	600	3.65	2	9	≥2000
IFR10440J	3.2	200	10.1±0.3	44.4±0.3	100	40	600	3.65	2	9	≥2000
IFR14250	3.2	170	14.1±0.3	24.2±0.3	85	34	510	3.65	2	9	≥2000
IFR14250	3.2	200	14.1±0.3	24.2±0.3	100	40	600	3.65	2	9.5	≥2000
IFR14430	3.2	250	14.1±0.3	42.3±0.3	125	50	750	3.65	2	15	≥2000
IFR14430	3.2	300	14.1±0.3	42.3±0.3	150	60	900	3.65	2	15	≥2000
IFR14430	3.2	400	14.1±0.3	42.3±0.3	200	80	1200	3.65	2	16	≥2000
IFR14430	3.2	450	14.1±0.3	42.3±0.3	225	90	1350	3.65	2	16	≥2000
IFR14430	3.2	500	14.1±0.3	42.3±0.3	250	100	1500	3.65	2	16	≥2000
IFR14430	3.2	550	14.1±0.3	42.3±0.3	275	110	1650	3.65	2	16.5	≥2000
IFR14430J	3.2	250	14.1±0.3	43.5±0.3	125	50	750	3.65	2	15	≥2000
IFR14430J	3.2	300	14.1±0.3	43.5±0.3	150	60	900	3.65	2	15	≥2000
IFR14430J	3.2	400	14.1±0.3	43.5±0.3	200	80	1200	3.65	2	16	≥2000
IFR14430J	3.2	450	14.1±0.3	43.5±0.3	225	90	1350	3.65	2	16	≥2000
IFR14430J	3.2	500	14.1±0.3	43.5±0.3	250	100	1500	3.65	2	16	≥2000
IFR14430J	3.2	550	14.1±0.3	43.5±0.3	275	110	1650	3.65	2	16.5	≥2000
IFR14500	3.2	400	14.1±0.3	49.3±0.3	200	80	1200	3.65	2	16.5	≥2000
IFR14500	3.2	500	14.1±0.3	49.3±0.3	250	100	1500	3.65	2	16.5	≥2000
IFR14500	3.2	600	14.1±0.3	49.3±0.3	300	120	1800	3.65	2	17	≥2000
IFR14500	3.2	700	14.1±0.3	49.3±0.3	350	140	2100	3.65	2	20	≥2000
IFR14500	3.2	800	14.1±0.3	50.1±0.3	400	160	2400	3.65	2	22	≥2000
IFR14500J	3.2	400	14.1±0.3	50.5±0.3	200	80	1200	3.65	2	16.5	≥2000
IFR14500J	3.2	500	14.1±0.3	50.5±0.3	250	100	1500	3.65	2	16.5	≥2000
IFR14500J	3.2	600	14.1±0.3	50.5±0.3	300	120	1800	3.65	2	17	≥2000
IFR14500J	3.2	700	14.1±0.3	50.5±0.3	350	140	2100	3.65	2	20	≥2000
IFR16340	3.2	400	16.4±0.3	34±0.3	200	80	1200	3.65	2	15	≥2000
IFR16340	3.2	500	16.4±0.3	34±0.3	250	100	1500	3.65	2	15	≥2000
IFR16340J	3.2	400	16.4±0.3	35±0.3	200	80	1200	3.65	2	18	≥2000
IFR16340J	3.2	500	16.4±0.3	35±0.3	250	100	1500	3.65	2	15.8	≥2000
IFR18490	3.2	1000	18.2±0.3	49.1±0.3	500	200	3000	3.65	2	30	≥2000
IFR18490	3.2	1100	18.2±0.3	49.1±0.3	550	220	3300	3.65	2	30	≥2000
IFR18490	3.2	1200	18.2±0.3	49.1±0.3	600	240	3600	3.65	2	31	≥2000
IFR18490J	3.2	1000	18.2±0.3	49.9±0.3	500	200	3000	3.65	2	30	≥2000
IFR18500J	3.2	850	18.2±0.3	50.5±0.3	425	170	2550	3.65	2	28	≥2000
IFR18500J	3.2	1000	18.2±0.3	50.5±0.3	500	200	3000	3.65	2	30	≥2000
IFR18500J	3.2	1200	18.2±0.3	50.5±0.3	600	240	3600	3.65	2	31.5	≥2000
IFR18650	3.2	1400	18.3±0.3	65.3±0.4	700	280	4200	3.65	2	40	≥2000
IFR18650	3.2	1500	18.3±0.3	65.3±0.4	750	300	4500	3.65	2	40	≥2000
IFR18650	3.2	1600	18.3±0.3	65.3±0.4	800	320	4800	3.65	2	40	≥2000
IFR18650	3.2	1800	18.3±0.3	65.3±0.4	900	360	5400	3.65	2	42	≥2000
IFR18650	3.2	2000	18.3±0.3	65.3±0.4	1000	400	6000	3.65	2	42	≥2000
IFR18650J	3.2	1400	18.3±0.3	66.5±0.4	700	280	4200	3.65	2	39	≥2000
IFR18650J	3.2	1500	18.3±0.3	66.5±0.4	750	300	4500	3.65	2	40	≥2000
IFR18650J	3.2	1600	18.3±0.3	66.5±0.4	800	320	4800	3.65	2	40	≥2000
IFR18650J	3.2	1800	18.3±0.3	66.5±0.4	900	360	5400	3.65	2	42	≥2000
IFR18650J	3.2	2000	18.3±0.3	66.5±0.4	1000	400	6000	3.65	2	42	≥2000
IFR18650P	3.2	1100	18.3±0.3	65.3±0.4	550	220	16500	3.65	2	40	≥2000
IFR18650P	3.2	1200	18.3±0.3	65.3±0.4	600	240	18000	3.65	2	40	≥2000
IFR21700	3.2	3000	21.7±0.3	70.8±0.3	1500	600	9000	3.65	2	65	≥2000
IFR21700	3.2	3200	21.7±0.3	70.8±0.3	1600	640	9600	3.65	2	65	≥2000
IFR22430P	3.2	950	22.2±0.3	43±0.3	475	190	9500	3.65	2	38	≥2000
IFR22650	3.2	2000	22.1±0.3	65.1±0.3	1000	400	6000	3.65	2	60	≥2000
IFR22650	3.2	2100	22.1±0.3	65.1±0.3	1050	420	6300	3.65	2	60	≥2000
IFR22650	3.2	2200	22.1±0.3	65.1±0.3	1100	440	6600	3.65	2	60	≥2000
IFR22650	3.2	2400	22.1±0.3	65.1±0.3	1200	480	7200	3.65	2	64.9	≥2000
IFR26500	3.2	2500	26.1±0.3	66.2±0.4	1250	500	7500	3.65	2	67	≥2000
IFR26650	3.2	3000	26.1±0.3	66.2±0.4	1500	600	9000	3.65	2	82	≥2000
IFR26650	3.2	3300	26.1±0.3	66.2±0.4	1650	660	9900	3.65	2	83	≥2000
IFR26650	3.2	3400	26.1±0.3	66.2±0.4	1700	680	10200	3.65	2	85	≥2000
IFR26650	3.2	3500	26.1±0.3	66.2±0.4	1750	700	10500	3.65	2	85	≥2000
IFR26650	3.2	3600	26.1±0.3	66.2±0.4	1800	720	10800	3.65	2	88	≥2000
IFR26650	3.2	3800	26.1±0.3	66.2±0.4	1900	760	11400	3.65	2	88.5	≥2000
IFR26650	3.2	4000	26.1±0.3	66.2±0.4	2000	800	12000	3.65	2	89	≥2000
IFR26650P	3.2	2400	26.1±0.3	66.2±0.4	1200	480	36000	3.65	2	85	≥2000
IFR26700	3.2	4000	26.3±0.3	71±0.5	2000	800	12000	3.65	2	118	≥2000
IFR26700	3.2	4600	26.3±0.3	71±0.5	2300	920	13800	3.65	2	120	≥2000
IFR26700	3.2	5000	26.3±0.3	71±0.5	2500	1000	15000	3.65	2	122	≥2000
IFR32700	3.2	5000	32.4±0.3	70.6±0.5	2500	1000	15000	3.65	2	145	≥2000
IFR32700	3.2	6000	32.4±0.3	70.6±0.5	3000	1200	18000	3.65	2	150	≥2000
IFR32700	3.2	6500	32.4±0.3	70.6±0.5	3250	1300	19500	3.65	2	150	≥2000
IFR32700	3.2	7000	32.4±0.3	70.6±0.5	3500	1400	21000	3.65	2	145	≥2000
IFR32140	3.2	15000	33.0±0.3	140±0.5	7500	3000	45000	3.65	2	310	≥2000

Learn More

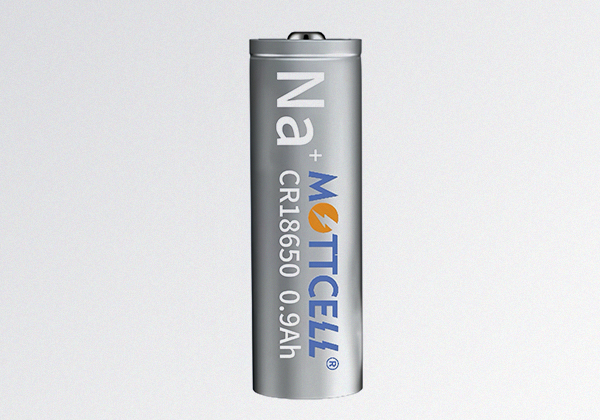

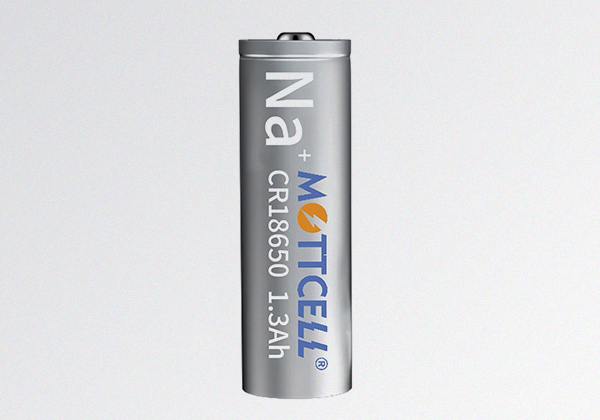

Sodium-ion battery

Next-gen sodium-ion cell. Ideal for ESS and light EVs. Great low-temp performance—sustainable alternative to lithium.

Model	Capacity(Wh)	Energy Density	Voltage Range	Discharge Rate	Cycle life	Technical Characteristics
NaCR18650	0.9Ah	90Wh/kg	20C	1.5-3.80V	3000(1.0C@85%)	Energy Type
NaCR18650	1.3Ah	100Wh/Kg	20C	1.5-4.0V	1000(1.0C@85%)	Energy Type
NaCR33140	7Ah	90Wh/Kg	20C	1.5-3.80V	3000(0.5C@80%)	Energy Type
NaCR33140	10Ah	120Wh/Kg	20C	1.5-4.0V	3000(0.5C@70%)	Energy Type
NaCR46145	15Ah	90Wh/Kg	20C	1.5-3.80V	3000(0.5C@80%)	Energy Type

Learn More

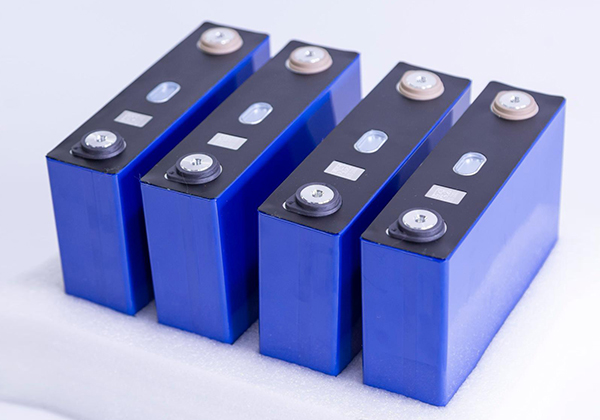

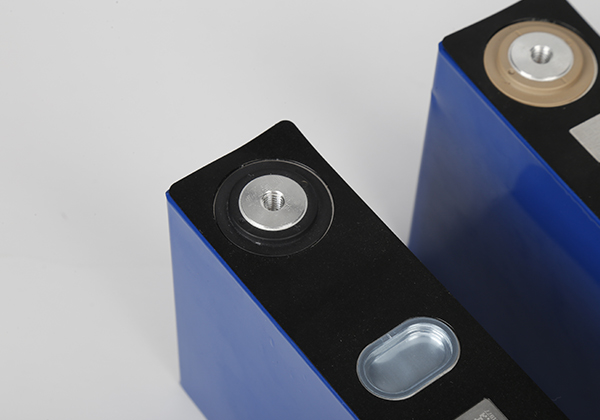

LiFePO4 Prismatic

3.2V LFP prismatic cells (314Ah/206Ah/105Ah). Ultra-long cycle life, high safety—built for ESS, EV packs, and large-scale power systems.

Dimensions (mm) Height Width Thickness			Recommended Charge Current	Recommended Discharge Current	Max Discharge Current	Charge Cut-off Voltage (V)	Discharge Cut-off Voltage (V)	Weight (Kg）	Cycle life (DOD 80%)
101.4±0.5	148.3±0.5	39.7±0.5	0.5C	0.5C	1C	3.65	2.5	1.1±0.1	≥4000
132.8±0.8	174.2±0.8	47.8±0.5	0.5C	0.5C	1C	3.65	2.5	2.15±0.1	≥3000
200.5±0.5	130.3±0.3	36.7±0.5	0.5C	0.5C	1C	3.65	2.5	1.98±0.1	≥3500
145±1.0	174±1.0	57±0.5	0.5C	0.5C	1C	3.65	2.5	2.88±0.1	≥4000
207.1±0.8	174.2±0.8	53.8±0.5	0.5C	0.5C	1C	3.65	2.5	4.1±0.15	≥3000
209.6±0.5	173.9±0.5	53.8±0.8	0.5C	0.5C	1C	3.65	2.5	4.2±0.1	≥6000/70%
207.3±0.5	173.9±0.5	71.7±0.8	0.5C	0.5C	1C	3.65	2.5	5.6±0.1	≥6000
207.2±0.8	173.9±0.8	71.7±0.5	0.5C	0.5C	1C	3.65	2.5	5.6±0.15	≥8000/70%

Learn More
