IFR14500 Consumer Electronics Batteries 3.2V 600Mah AA Lithium Battery For Toys Cars
| Place of Origin: | Guangdong, China |
| Brand Name: | Mottcell |
| Model Number: | IFR14500 3.2v |
| Minimum Order Quantity: | 100 pieces |
| Price: | $0.50/pieces >=100 pieces |
| Packaging Details: | Standard export packing |
| Supply Ability: | 500000 Piece/Pieces per Month |
|
Detail Information |
|||
| Place of Origin | Guangdong, China | Brand Name | Mottcell |
|---|---|---|---|
| Model Number | IFR14500 3.2v | Weight: | 6g, Approx 18g |
| The Charging Ratio: | 0.2C | The Discharge Rate: | 0.2C |
| Anode Material: | LFP | Application: | Consumer Electronics, BOATS, Electric Bicycles/Scooters, Solar Street Light/Chrismas Lights/power Tools |
| Type: | Li-Ion | Shape: | Cylindrical |
| Warranty: | 24months, 3years | Product Name: | IFR14500 600mah |
| Certificate: | UN38.3/CE/ROHS/ISO/BIS | Payment: | LC/TT/Western Union |
| Color: | Blue/red/violet/grey/black | Size: | 14mm*50mm |
| Chargeable: | Yes | Port: | Shenzhen |
| High Light: | IFR14500 Consumer Electronics Batteries,Consumer Electronics Batteries 600Mah,3.2V AA Lithium Battery |
||
Product Description
IFR14500 3.2V 600Mah AA Lithium Batteries For Toys Cars
Specification
|
No.
|
Item
|
General Parameter
|
|
|
1 |
Rated Capacity
|
Typical
|
600mAh |
|
Minimum |
585mAh |
||
|
2 |
Nominal Voltage
|
3.2V |
|
|
3 |
Voltage at end of Dischargr
|
2.0V |
|
|
4 |
Charging at end of Voltage
|
3.65V |
|
|
5 |
Internal Impedance
|
100mΩ |
|
|
6 |
Standard charge
|
Constant Current 0.2C5A Constant Voltage 3.65V 0.01C5A cut-off
|
|
|
7 |
Standard discharge
|
Constant Current 0.2C5A end Voltage 2.0V
|
|
|
8 |
Fast charge
|
Constant Current 1C5A Constant Voltage 3.65V 0.01C5A cut-off
|
|
|
9 |
Fast discharge
|
Constant Current 1C5A end Voltage 2.0V
|
|
|
10 |
Maximum Continuous Charge Current
|
1C5A |
|
|
11 |
Maximum Continuous Discharge Current
|
3C5A |
|
|
12 |
Operation Temperature Range
|
Charge:0~45°C |
|
|
Discharge:-10~60°C |
|||
|
13 |
Storage Temperature Range
|
Less than 1 year:-20~25°C |
|
|
Less then 3 months:-20~40°C
|
|||
|
14 |
Weight
|
Approx:18 g |
|
|
15 |
Pack Dimension
|
Height:(h):50.3mm) |
|
|
Width:(d):14.2mm) |
|||

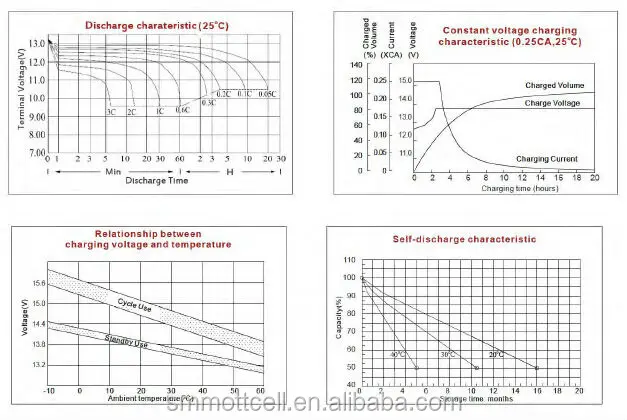

Charge-discharge Curve
Advantage
High voltage: 3.2v/cell
Energy density : Weight density, its weight 150mAh/g
High -efficient charge : Charge and discharge efficiency is more than 99.8%
Low self-discharge : After fully charged with 28 days, the battery self- discharge is less than 5%
No memory effect: Whether the battery is fully charged or discharged power, it assure can be charge and discharge of 100%.
High power discharge : The battery can continue to 15C or higher-current discharge.
Good of high temperature feature: Range of 80c high temperature can discharge high capacity than normal temperature.
Environmental Protection
Battery does not contain any heavy metal material and harmful chemicals.
High Security
Basically solves the security issues of LiCoO2 battery and LiMnO2 battery (forcefully impact will cause battery to explode ). LiPO4 battery is the safest in all kinds of Li-ion batteries.
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
