INR 14500 High Temperature Lithium Battery 3.7 V 800mah Li Ion Battery Cells

Catagories

INR 14500 High Temperature Lithium Battery 3.7 V 800mah Li Ion Battery Cells

Product Details

Place of Origin:	Guangdong, China
Brand Name:	Mottcell
Model Number:	18650-2600

Payment & Shipping Terms

Minimum Order Quantity:	100 units
Price:	$1.00/units 100-499 units
Packaging Details:	200 units per box
Supply Ability:	5000000 Pack/Packs per Month

Detail Information
Product Description

Detail Information

Product Description

ICR14500 3.7v 800mAh Li-ion Battery

CHARGE
Std. Charge Current	0.2C
Max.Charge Current	1C
Rec. Charge Voltage	4.2V
Rec. CutOff Voltage	4.25V~4.30 V
Std. Charging Time @0.5C	5.0h
Quick-Charge Time @1C	1.0h

DISCHARGE
Std. Discharge Current	0.2C
Max. Discharge Current	2C
Max.Peak Discharge Current	3C[6s]
Rec. Discharge Voltage	3.00V
Rec. Cut-Off Voltage	2.90V~250 V
Std. Discharging Time @0.5C	5.0h
Quick Discharging Time @1C	0.5h

GENERAL
Nominal Voltage	3.7V
Nominal Capacity	800mAh @0.2C
Min.Capacity	780mAh @0.2C
Energy	2.96Wh
Resistance	≤80mΩ @50% SOC
Self-discharge	<3% / Month
Cycle Life @0.5C	500 Cycle

Dimension (D x H)	14.1*49.7 mm
Approx.Weight	approx. 20.0 g
Case Material	Steel
Welding Mode	DC Spot Welding
Welding Materials	Nickel Strap
Swell Coefficient	0

TEMPERATURE
Discharge Temperature	-4~140℉(-20~60℃)
Charge Temperature	32~113℉(0~45℃)
Storage Temp.(One Month)	-4~113℉(-20~45℃)
Storage Temp.(One Year)	32~95℉(0~35℃)
Storage Humidity	＜70%

COMPLIANCE
Certifications	CE.UN38.3.UL.MSDS

Advantage:
1. Enviromental friendly.

2. High density of energy.

3. High capacity.

4. Fast Charging.

5. Safety in use.

6. Long cycle life. 800 cycles.

7. No memory effort.

8. Stable discharge platform.

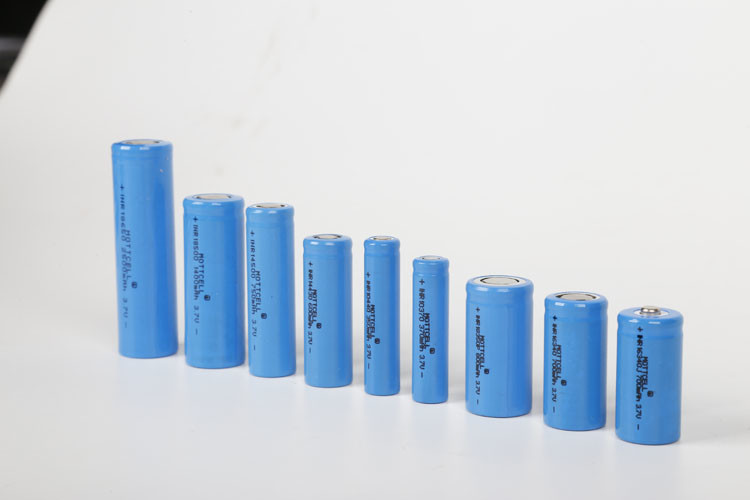

INR 14500 High Temperature Lithium Battery 3.7 V 800mah Li Ion Battery Cells 1
