Place of Origin: | Guangdong, China |
Brand Name: | Mottcell |
Model Number: | 18650-2600 |
Minimum Order Quantity: | 50 units |
Price: | $2.40/units 50-499 units |
Packaging Details: | 200 units per box |
Supply Ability: | 5000000 Pack/Packs per Month |
Detail Information |
|||

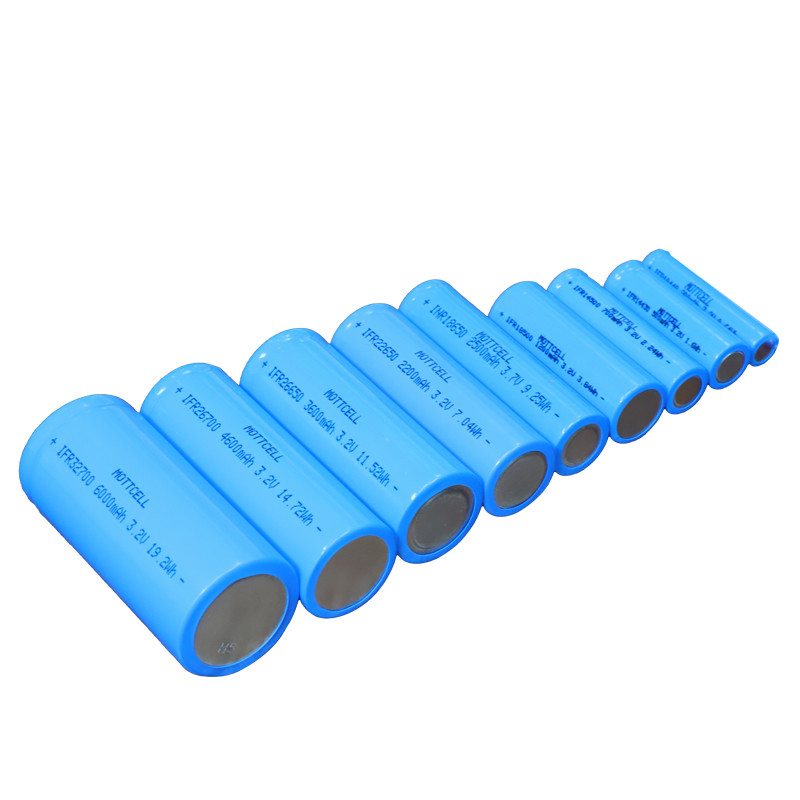

18650 3.7V 3000mAh Li-Ion Battery Cells
No.
|
Item
|
General Parameter
|
Remark
|
1 |
Rated Capacity
|
Type 3000mAh |
Standard charge and Standard discharge |
(Min.) 2950mAh |
|||
2 |
Nominal Voltage
|
3.7V |
|
3 |
End of Charge Voltage |
4.2V |
|
4 |
Charge mode |
CC,CV |
|
5 |
Charging current |
≤1A |
|
6 |
Charging cut-off current |
0.02C |
|
7 |
Charging time |
≈4h |
|
8 |
Over-Charge Voltage Protection(cell) |
4.35V±0.025VV |
|
9 |
Over-Charge Voltage Protection(Pack) |
4.35V±0.025VV |
|
10 |
Discharging Current |
1A |
|
11 |
Maximum Continuous Discharging Current |
3A |
|
Continuous the table 1
No. |
Item
|
General Parameter
|
Remark
|
12 |
Discharge of Peak current
|
________________ |
|
13 |
Over-disCharge Voltage(cell) |
2.40V±0.08V |
|
14 |
Over-disCharge Voltage Protection(Pack0 |
2.40V±0.08V |
|
15 |
Over-Current Discharge Protection |
6~9A |
|
16 |
Short circuit protection |
Have |
|
17 |
Short circuit protection Release |
_________________ |
|
18 |
Cell Dimension( |
Can change |
|
Dia 18mm |
|||
Height 65mm |
|||
19 |
Weight |
≈65.0g |
|
20 |
Operation Temperature Range |
Charge 0~45°C |
60±25%R.H. Bare Cell
|
Discharge -10~60°C |
|||
21 |
Storage Temperature Range |
1 month-20°C ~ 45°C |
60±25%R.H. at the shipment state |
3 month(-20°C ~ 45°C |
|||
1 year-20°C ~ 20°C |
