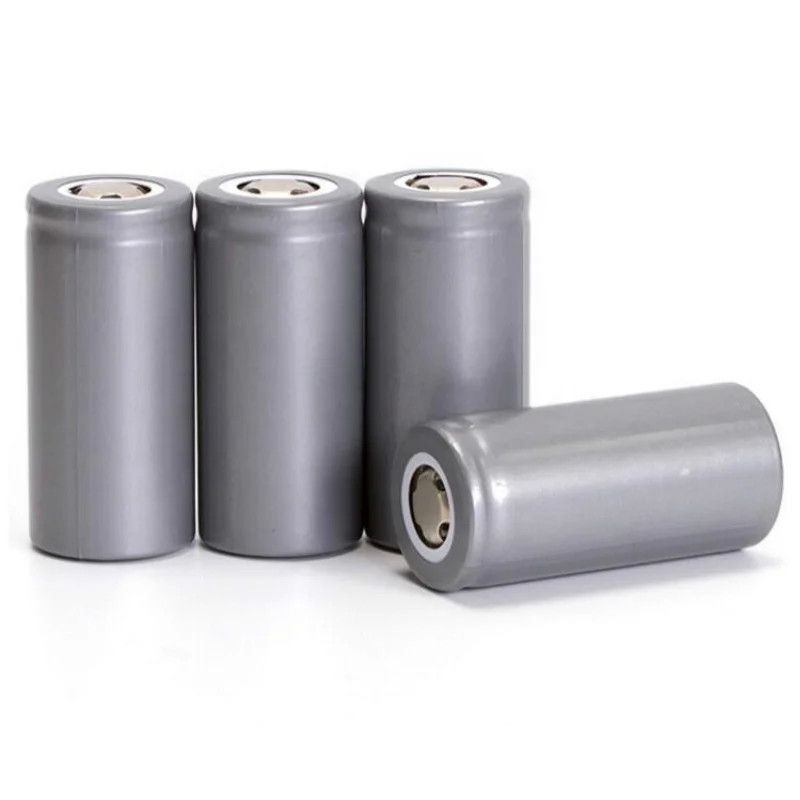

3.2V 32700 6000mAh LiFePO4 Rechargeable Battery Cell for Sodium Ion Batteries
| Place of Origin: | Guangdong, China |
| Brand Name: | Mottcell |
| Certification: | CE/ROHS/ISO/UN38.3 |
| Model Number: | IFR32650 |
| Minimum Order Quantity: | 300 pieces |
| Price: | $1.85/pieces 300-19999 pieces |
| Packaging Details: | Neutral Hard Cartons |
| Delivery Time: | 15-20days |
| Payment Terms: | D/A, D/P, L/C, T/T |
|
Detail Information |
|||
Product Description
High capacity 3.2V 32700 6000mah 3C discharge LiFePO4 rechargeable battery cell
Specification
|
Nominal Capacity |
6000mAh |
Cell Configuration |
cylinder |
|
Mimimum Capacity |
5950mAh |
Internal Impedance |
15mΩ |
|
Nominal Voltage |
3.2V |
Dimensions(mm) |
32.5mm(dia.)*65.5mm(ht.) |
|
Discharge Cut-off Voltage |
2.0V |
Weight |
150 g |
|
Charge Cut-off Voltage |
3.65 V |
Charge Temperature Range |
0°C~45°C |
|
Standard Charging Current |
1000mA |
Discharge Temperature Range |
-10°C~60°C |
|
Standard Discharge Current |
1000mA |
Charge Method |
CC/CV |
|
Fast Charging Current |
6000mA |
Storage Temperature Range |
Less than 1 year:-20~25°C |
|
Less then 3 months:-20~40°C |
|||
|
Max Discharging Current |
18000mA |
Cycle Life (80% DOD) |
3000 cycles |
|
Maximum Continuous Charge Current |
1C |
Maximum Continuous Discharge Current |
3C |
Features
* High quality
* Factory price, fast delivery
* Long cycle life, No memory effec
* High safety, environment friendly
* High working voltage for single battery cells
* Widely application for electronics and industries
Safety
Passed the below safety tests (Drop shock,Impact,Squeeze,Soak,Bonfire,over-charge,over-discharge). No leakage, no venting, no disassembly, no rupture and no fire with stable chemical structure.
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
Our customers
Our certifications
Shipping & Payment
Our factory
Our website :
Http://www.mottcell.com
1 I want to custom battery pack, can you make it?
We are lithium Battery Manufacturer for 13 years, so if you have any request on li-ion battery packs, simply send us an inquiry.
2 How Soon can i get samples, and how much will you charge it, will you refund?
We make samples in about 3-12 days, depending if we have them on stock, no extra mark upon samples, and will refund on mass production.
3 What’s your warranty? When does it start?
All of our products have 1-2 yearslimited warranty, start from the shipping date.
4 What will You Do if we got damaged products when arrive?
We will replace new goods at our cost if the batteries are damaged when arrive, no charges on your side, please contact us for images of damage.
5 How about your lead time, and especially when can i get the goods after i make payment?
Lead Time for samples is about 3-10 days and bulk order around 12-25 days depending on the order quantity and our orderson schedule.
