3.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah

Product Details
Place of Origin: Guangdong, China
Brand Name: Mottcell
Model Number: lithium ion batteries
Payment & Shipping Terms
Minimum Order Quantity: 2 units
Price: $32.00/units 2-499 units
Packaging Details: Wooden cartons

Detail Information

Product Description

Gotion 104Ah 100Ah 3.2V Prismatic Lifepo4 Battery Cell LFP Grade A 3.2V 100Ah Lithium Ion Batteries

Product Description



 Specification



Battery Type

LiFePO4

Nominal Voltage

3.2V

Nominal Capacity

100ah

Internal Resistance

≤0.4mΩ

Limited Charge Voltage

3.65V

Charge Method

CC/CV

Discharge Cut-off Voltage

2.3V

Max. Charge Current

1C

Max. Continuous Discharge Current (<30min)

3C

Pulse Discharge Current (<3s)

5C

Cycle Life

> 3000 cycles

Dimension

Thickness: 48mm

Width: 174mm

 Length: 133mm

Weight

2.3kg

Operation Temperature Range

Charge: 0~45℃;

Discharge: -20~60℃

Recommended operating temperature: 15℃~35℃

Self-Discharge Rate

Residual capacity: ≤5%/month;


Features

1. Safety: safest Li-Ion battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 3000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 5% monthly

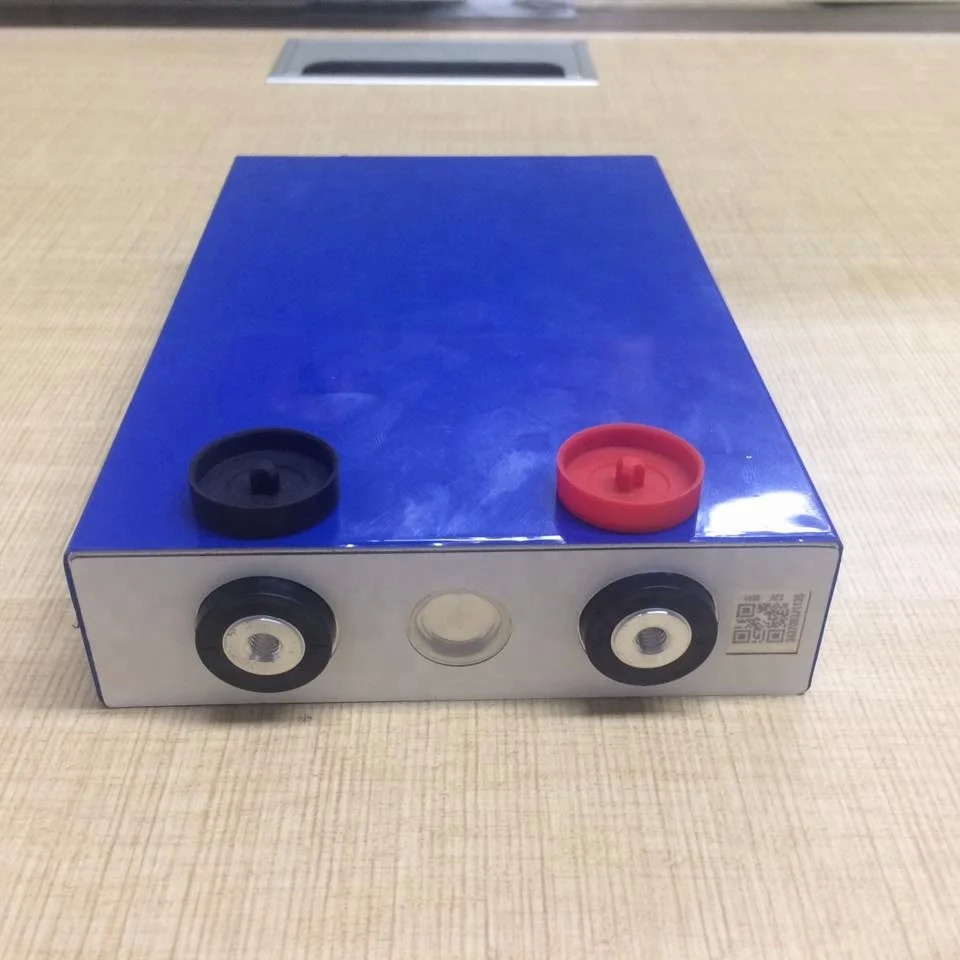

Detailed Images





3.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 03.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 13.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 23.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 3

Packaging & Shipping

3.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 4





Company Information

3.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 53.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 63.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 73.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 83.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 9

CONTACT

3.2V Lithium Ion Lifepo4 100ah Prismatic Battery Cells LFP Grade A 104Ah 10



FAQ

Q1. Can I have a sample order for Battery?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 15-18 days, mass production time needs 25-30 days

Q3. Do you have any MOQ limit for Battery?

A: Depends on different models.For the very regular models,the MOQ is LOW

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by TNT, UPS, FedEx.... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Battery?

A: Firstly,pls let us know your requirements,such as the dimension,continuous&peak discharge current ,application of the battery.
Secondly,pls let us know the purchasing quantity and when will your project start.We quote according to the details.

Thirdly customer confirms the price,sample and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on battery ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 12 months warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order to replace the defective.

Thirdly,we will test the defective batteries and make 8D report.We will find out the reason and propose the

improvement measures for future production.
