12V 100Ah Battery Pack: Compare 3 Models for OEM Buyers

A 12V 100Ah battery pack specification should identify the exact model, its installation envelope and its electrical operating limits. Mottcell's public energy storage table lists three 100Ah models with the same 1,280Wh energy figure and different case dimensions. That makes mechanical fit a useful starting point for an OEM comparison, before reviewing the charger, load and sample requirements.

The three references are SMG12100mini, SMG12100BE and SMG12100PLUS. Use the current energy storage battery product table to establish the catalogue reference, then request a controlled specification and drawing for the configuration being quoted. A shared capacity label does not establish that the models are interchangeable in your equipment.

Which three 12V 100Ah models should you compare?

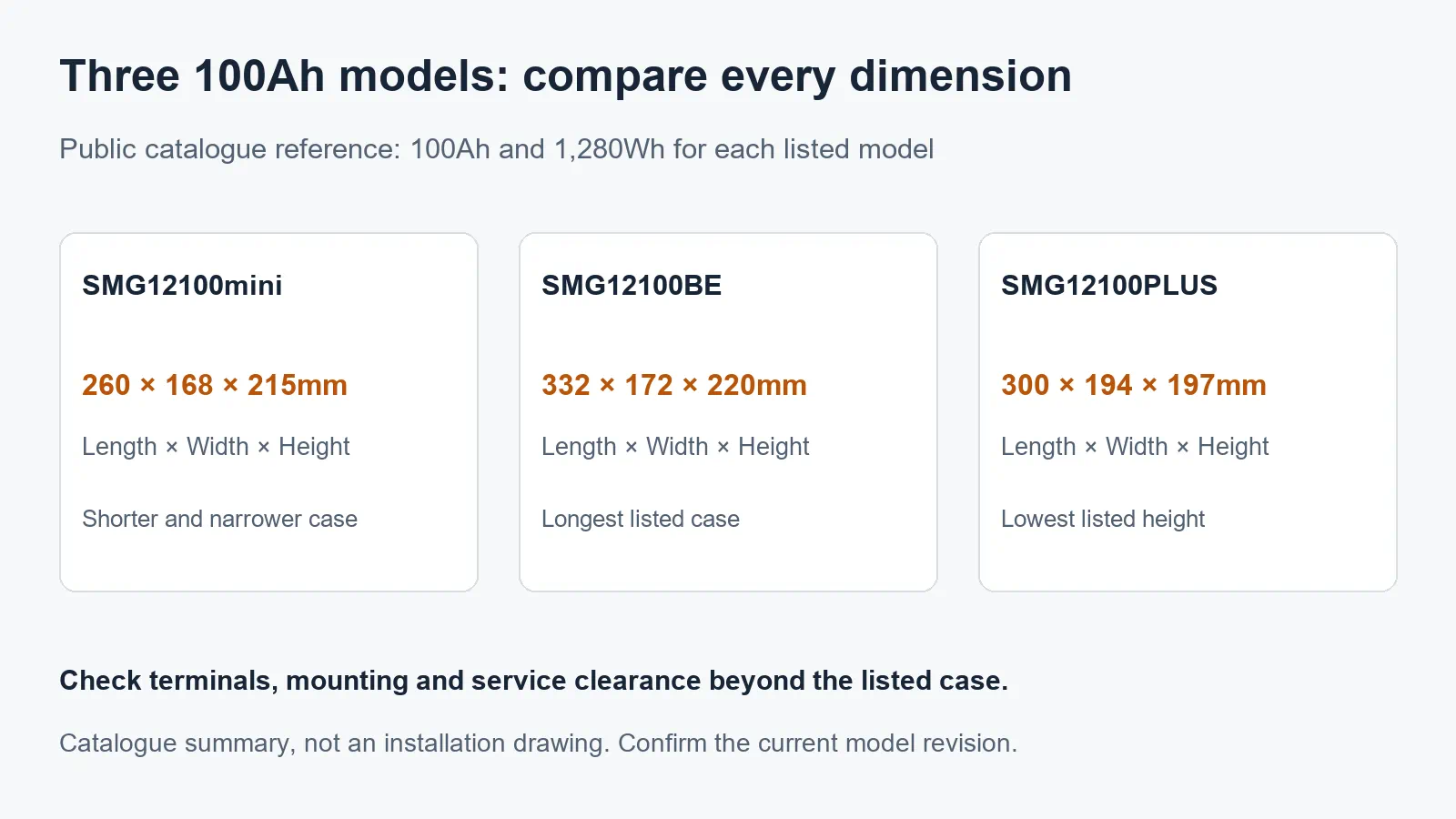

The public table reviewed on October 23, 2026 lists SMG12100mini at 260 × 168 × 215mm, SMG12100BE at 332 × 172 × 220mm and SMG12100PLUS at 300 × 194 × 197mm. These are length, width and height references. Confirm the current drawing, tolerances and measurement boundaries before using them for installation approval.

The table is a catalogue comparison, not a stock statement or an approved substitution list. The suffixes identify different references, but do not by themselves explain cell selection, communication functions, low temperature features or the delivery configuration. Request those details for the exact offer rather than inferring them from the name.

Keep the model identifier on the quotation, drawing, sample label and acceptance record. If the supplier proposes a custom variant, ask for a distinct configuration reference or revision. This helps prevent a successful review of one enclosure from being applied to a different pack during a later purchase.

How do you check whether a case will fit?

Compare all three dimensions against the usable installation space, then review the additional space needed for connections and maintenance. A case dimension is only the starting envelope. Ask whether the drawing includes terminals, covers, handles, mounting features and other projections before deciding that the available compartment is sufficient.

Consider a hypothetical compartment limited to 280 × 180 × 230mm in its intended orientation. The mini model's listed case dimensions fall within those numbers, while the BE and PLUS lengths exceed 280mm. This makes mini a candidate for a drawing review, not an approved installation: terminal clearance and mounting still remain unresolved.

Now consider a different hypothetical space limited to 315 × 205 × 210mm. PLUS falls within that listed case envelope, while mini's listed height exceeds 210mm and BE's listed length exceeds 315mm. The example shows why “smaller” depends on the constrained direction. Neither example authorizes rotating a pack or changing its mounting orientation.

Send a dimensioned drawing or annotated compartment layout with the inquiry. Mark the access opening as well as the installed space. A pack may fit once inside a cabinet but still be impossible to insert, connect or remove through the available opening. Ask the supplier to review the complete mechanical requirement.

What needs space beyond the battery case?

Leave room for the approved terminal arrangement, protective covers, cable route and service procedure. The necessary clearances depend on the selected hardware and installation design. Obtain the supplier's drawing and installation guidance instead of adding a guessed universal allowance to the catalogue dimensions.

Check how the equipment team will reach the terminals after mounting. Include the disconnect arrangement, nearby conductive surfaces and any tools required by the approved assembly procedure in the review. Do not let a purchasing comparison based only on outside dimensions become a substitute for the integrator's installation assessment.

Ask about the permitted mounting orientation and any restraints needed for the intended environment. A stationary cabinet, mobile instrument enclosure and equipment trolley impose different mechanical requirements. Describe expected movement and environmental conditions, then request evidence applicable to the proposed configuration rather than borrowing claims from another model.

For a project that needs a different enclosure or mounting interface, the custom metal enclosure battery pack range provides a route to discuss those requirements. The existence of a custom range does not establish a particular design's availability, protection rating or completed qualification. Keep those items explicit in the proposal.

How much energy does a 100Ah pack provide?

The three catalogue references each list 1,280Wh. For energy planning, 12.8V × 100Ah equals 1,280Wh, or 1.28kWh. This nominal energy calculation does not establish the energy delivered to a particular load. The approved operating window, conversion equipment, temperature and test conditions affect the usable result.

An illustrative calculation using an 80% usable energy allowance and 90% conversion efficiency produces 921.6Wh at an AC load. A constant 100W load would therefore run for about 9.2 hours under those assumptions. Neither percentage is a measured value or a permitted operating limit for the models in the table.

Build your requirement from the equipment's actual duty cycle. A continuously powered monitoring device, an intermittently used actuator and an AC instrument with standby consumption need different load descriptions. Record when each load runs and whether the backup requirement applies to all equipment or only essential functions.

If the energy budget points to a different capacity, use the 12V LiFePO4 capacity selection guide. This article compares 100Ah model references; the broader guide helps decide whether 100Ah is the right requirement. Keep that decision separate from choosing an enclosure within the same capacity class.

What current does the equipment actually demand?

Review power demand independently from energy capacity. A hypothetical 800W AC load at 90% inverter efficiency would require about 69.4A at an assumed 12.8V battery voltage. That is a planning estimate. Current can increase as battery voltage falls, and startup demand may differ from running demand.

The public table lists charging/discharging current of 0–100A and maximum continuous operating current of 100A for the three model references. Treat these as catalogue values that need current, model specific confirmation. Ask for the applicable temperature, installation conditions, duration limits and any derating before selecting the pack for a load.

Request separate explanations of continuous current, short duration peaks and protection trips. A transient current value does not establish continuous operation at that value. The integrator also needs to understand recovery behavior after a trip so that the equipment does not enter an unexpected restart cycle.

Document the load's permitted input range and minimum operating voltage. A device may stop before the battery reaches its own cutoff. Sample testing should therefore measure the required system outcome as well as the battery's capacity result. This keeps a valid battery test from being mistaken for a complete equipment compatibility test.

How should a BMS option be specified?

Request the functions and operating behavior needed by the application, then confirm the exact BMS configuration on the quotation. The catalogue mentions hardware and software BMS options, but a general option label does not establish every protection setting, communication interface or monitoring feature available on a particular order.

List required information such as state indication, alarm behavior and communication with another controller. Where a communication interface is proposed, request its protocol document, connector assignment and supported messages. A physical connector with a familiar name does not prove that the receiving equipment can interpret the data correctly.

Clarify how the system should handle normal shutdown, low energy conditions and recovery. Protection cutoff and routine operating control serve different purposes. Ask the battery supplier and equipment integrator to review their settings together so normal operation does not rely on repeatedly triggering a protective limit.

For the wider OEM process, the 12V battery pack manufacturing guide describes how requirements, samples and production scope should connect. Keep the BMS configuration attached to the model revision that the purchasing team ultimately approves.

Can you retain an existing charger or solar controller?

Provide the existing charger's model, available settings and operating sequence for review. “12V charger” does not establish compatibility with a lithium battery. The supplier needs to confirm the charging profile and current limits for the exact proposed pack, including its intended operating and temperature conditions.

Identify any automatic charging functions that the equipment can enable. For a replacement project, ask the integrator to review functions inherited from the previous battery system rather than copying its settings without checking. Do not choose charging voltages from nominal energy arithmetic or from another manufacturer's model.

For solar equipment, review the controller and array as a system. Battery charge current limits, controller settings and photovoltaic input limits answer different questions. Share the relevant equipment documentation with the supplier and record the configuration that was reviewed, including firmware where it affects available control behavior.

If the project instead needs a much larger solar reserve, the 280Ah solar backup buying guide explains load budgeting and replenishment assumptions for that separate requirement. Moving to a different capacity still requires a fresh check of current limits, physical fit and approved charging behavior.

What should you put in the inquiry before comparing prices?

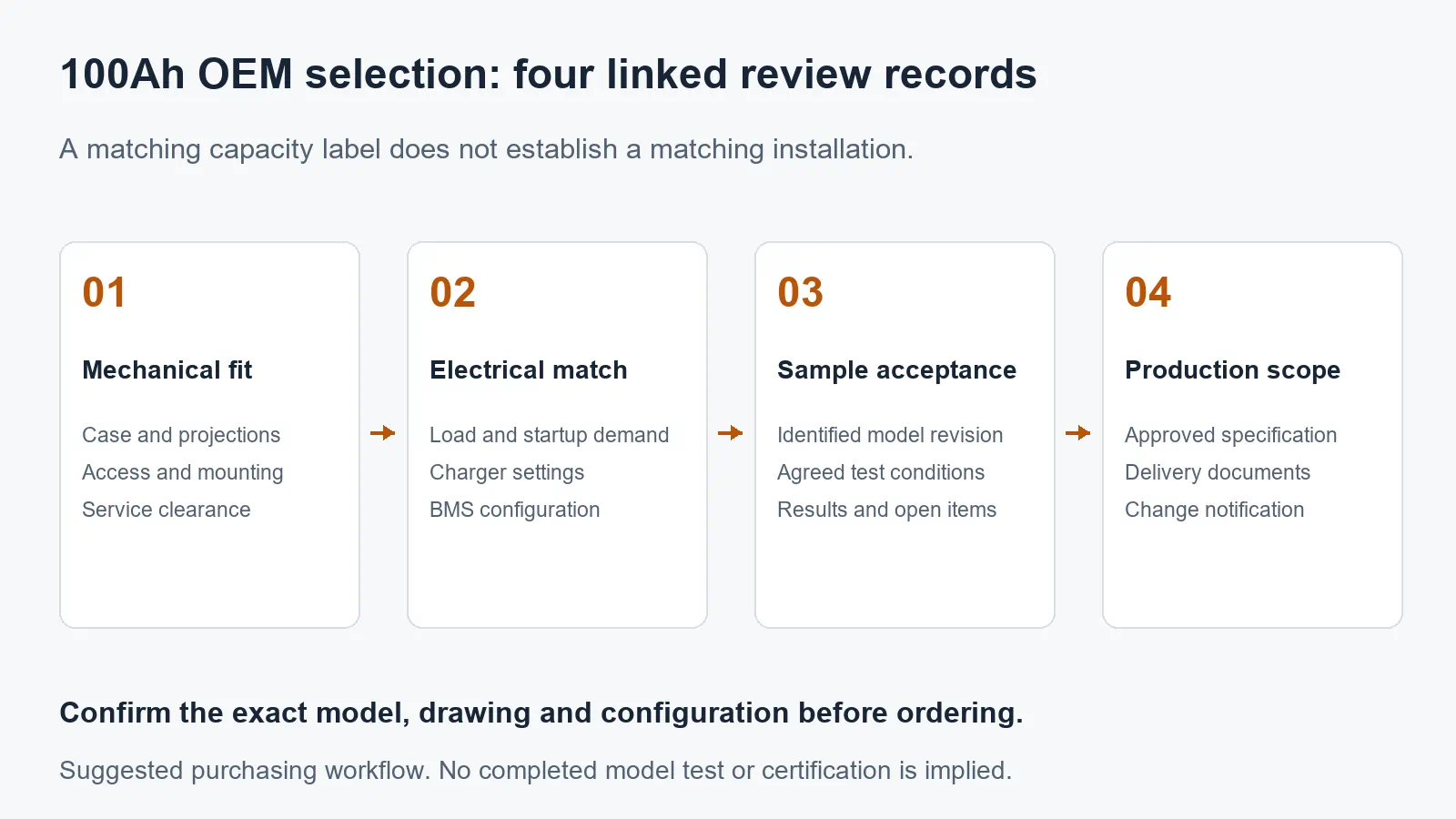

Give each supplier the same requirement sheet so the returned offers cover comparable scope. Include equipment voltage range, running and startup demand, required backup duration, installation drawing, charging equipment, environment, order quantity and destination market. Mark which requirements are mandatory and which are preferences.

Ask the supplier to identify its proposed model and any departures from your requirement. A quotation that simply repeats “12V 100Ah battery pack” leaves too many variables open. The purchasing team should be able to see what is included, what remains subject to confirmation and what requires a sample review.

Separate sample quantities from recurring production quantities. Check whether connectors, cables, packaging and requested reports form part of the offer. A lower quoted unit price may reflect a different scope, so compare the stated configuration and deliverables before drawing a commercial conclusion.

Which documents should support the proposed model?

Start with the controlled specification and mechanical drawing for the exact supplied configuration. Add any test reports, declarations or other documents required by the destination market and application. Verify that model identification and revision match the proposal rather than accepting a general company certificate as proof of every product claim.

Where shipping lithium batteries is involved, request the relevant UN 38.3 test summary and confirm that it applies to the supplied battery type. PHMSA's lithium battery test summary guidance explains this documentation requirement. The summary alone does not establish all shipment conditions or prove suitability for the equipment.

Ask how changes to cells, BMS, enclosure or connections are communicated after approval. The purchasing file should show the accepted configuration and the process for reviewing a proposed substitution. A matching capacity label should not allow an unreviewed change to bypass the agreed approval process.

Company information on the Mottcell About page can help establish supplier identity and stated capabilities. Model documents and sample results serve a different purpose: they support the decision about the specific proposed pack. Keep those evidence types separate in the review.

How do you evaluate the first sample fairly?

Agree on the sample procedure and acceptance criteria before testing. Record model, revision, sample identification, test equipment, temperature, charge procedure, load profile and stopping condition. These details let the team interpret the result and investigate any later difference between the approved sample and delivered production units.

Evaluate mechanical fit against the controlled drawing as well as electrical operation. Confirm access for installation and removal, terminal arrangement and mounting provisions. Record any proposed change to the equipment or enclosure. A fit issue discovered during a sample review should be resolved explicitly rather than hidden in a general “passed” statement.

For an intended backup application, describe the transfer and recovery behavior that matters to the equipment. A battery can meet an agreed capacity measurement while the complete system still fails an equipment startup requirement. Keep both observations in the report and ask the relevant supplier or integrator to resolve the mismatch.

Use supplier agreed procedures and suitable facilities for any evaluation that approaches protection limits or abnormal conditions. This guide is a purchasing framework, not instructions for performing fault tests. Make sure the acceptance record states exactly which checks were completed and which items remain open before placing the production order.

Include storage and commissioning requirements in the handover. The receiving team needs to know how the approved pack should be stored, inspected and prepared before use. Assign responsibility for the required steps so a documented sample approval remains connected to how the delivered units will actually enter service.

Frequently asked questions

Are all three 12V 100Ah models interchangeable?

No. The public table lists the same 100Ah and 1,280Wh figures but different dimensions. Confirm the drawing, terminal layout, mounting, BMS configuration, approved load and charger for the exact offer. Even a model that fits the case envelope still needs an installation and compatibility review.

How long will a 12V 100Ah battery pack run a 100W load?

The illustrative AC calculation in this guide gives about 9.2 hours from 1,280Wh with an assumed 80% usable energy allowance and 90% conversion efficiency. Actual runtime depends on the approved model's operating window, load behavior, temperature and losses. Request a test against your intended duty cycle.

Can I connect multiple 100Ah packs together for more energy?

Only use a series or parallel arrangement explicitly approved for the exact pack and BMS configuration. Ask for permitted quantities, matching requirements, charging arrangements and protection design. A shared voltage and capacity label does not establish permission to combine the packs.

Request a model comparison your team can approve

Send the requirement sheet through the Mottcell inquiry page, identifying any preferred 100Ah reference and the dimensions that constrain the installation. Request a controlled specification, drawing, configuration list and sample proposal. This gives purchasing and engineering a common basis for comparing the offer and resolving open items.

Editorial basis, updated October 23, 2026: model references and listed values come from the linked public product table. Fit scenarios and runtime calculations use stated hypothetical conditions. This guide does not report completed model tests or certify an installation; confirm the current model specification and application requirements before approval.
