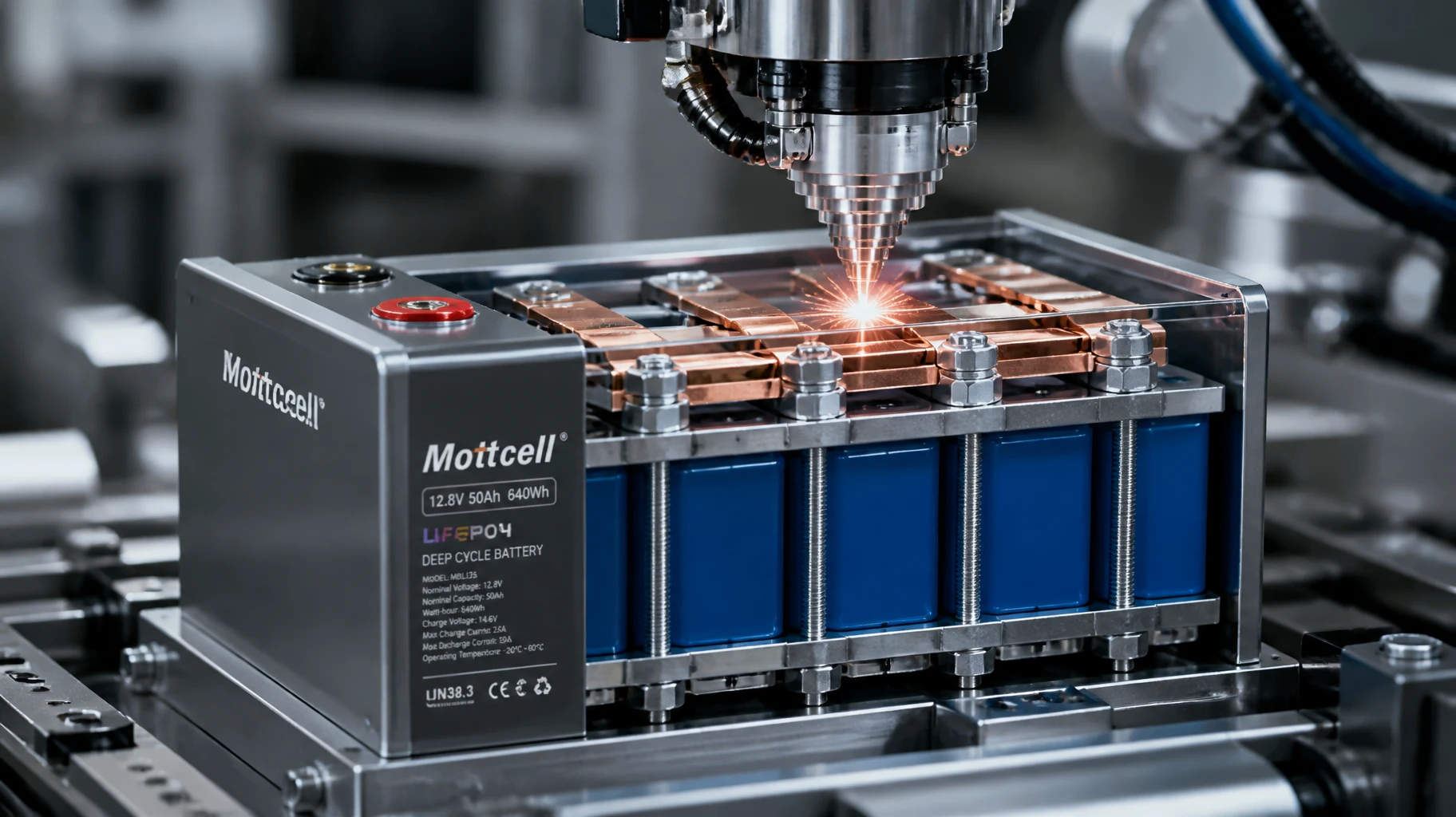

A 12V 50Ah battery pack is a useful starting point for compact backup equipment, small solar loads and other low-voltage projects. However, the capacity label alone does not tell an OEM buyer whether the battery will fit, supply the required current or operate for the required number of hours. Those decisions need an identified model, a load profile and an agreed verification plan.
Mottcell's published energy storage battery table lists two relevant 50Ah models: SMG1250BE and SMG1250PLUS. Both are listed at 640Wh, but their enclosure dimensions differ. This guide compares those published dimensions, explains the difference between nominal energy and usable runtime, and gives purchasing teams a practical way to request samples and evaluate quotations.

Define what the battery must keep running before requesting a quotation. A small monitoring cabinet with a nearly constant load has a different requirement from a pump that starts intermittently. Two machines can consume the same daily energy while imposing very different peak currents. A supplier needs both pieces of information to assess a configuration.
Record the equipment's acceptable input-voltage range, normal power demand, starting demand and operating schedule. Include accessories such as a router, display, controller or cooling fan. For an AC load, identify the inverter and its operating conditions. For a DC load, identify any converter between the battery and equipment. These components affect the energy available to the useful load.
Also define the required autonomy: several hours between charging opportunities, overnight operation, or a specified backup interval. State how much reserve the application requires at the end of that interval. Reserve is a design choice, not an extra capacity hidden inside the battery. A purchasing brief that records these assumptions gives engineering and procurement a common basis for comparing offers.
For a broader comparison across capacities, use the 12V LiFePO4 battery capacity guide. The purpose of this page is narrower: deciding whether a 50Ah proposal meets a defined requirement and what evidence is still needed before approval.

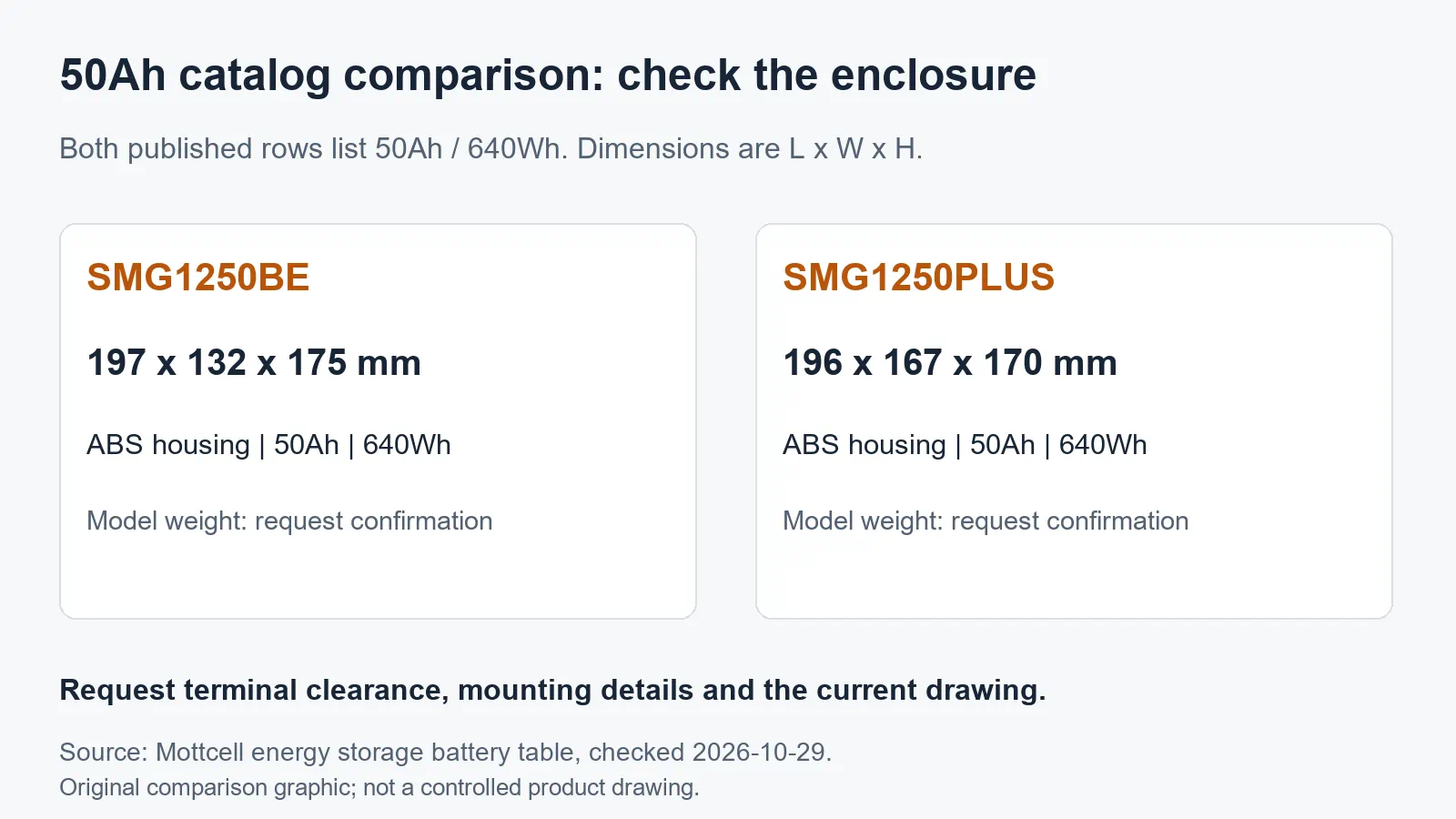

The following values are transcribed from Mottcell's energy storage battery product table, checked on October 29, 2026. They describe the published catalog entries, not a signed specification for every optional configuration. Request the current controlled drawing and datasheet for the exact model included in your quotation.
| Published field | SMG1250BE | SMG1250PLUS |
|---|---|---|
| Capacity | 50Ah | 50Ah |
| Nominal energy listed | 640Wh | 640Wh |
| Enclosure dimensions, L × W × H | 197 × 132 × 175mm | 196 × 167 × 170mm |
| Housing material | ABS | ABS |
| Optional BMS descriptions | 4S hardware / 4S software | 4S hardware / 4S software |
| Recommended charging current shown | 0.5C | 0.5C |
| Maximum continuous operating current shown | 50A | 50A |
| Instantaneous current shown, 3–5 seconds | 100A | 100A |
The PLUS model is listed as wider and slightly shorter in height. Its name should not be taken as proof of more energy: both rows list the same 50Ah and 640Wh values. Similarly, identical current entries do not establish identical firmware, connector arrangements or communication features. Those details must be checked against the actual proposed configuration.
The cited table does not provide a model-specific weight, ingress-protection rating, terminal drawing or complete charge-temperature window for these rows. If your purchasing specification needs those values, request them directly. A weight copied from another supplier's 50Ah battery or from a different Mottcell capacity would not establish the weight of either model here.

A battery can fit inside an enclosure and still be unsuitable for installation. Terminal access, insulated covers, cable bends, mounting restraints and service access require space beyond the case dimensions. Give the supplier a drawing of the available compartment, including obstructions and the direction in which the battery must be inserted and removed.
Ask whether the listed height includes terminals and whether the mechanical drawing shows the maximum envelope rather than a typical measurement. Confirm the orientation of positive and negative connections, terminal hardware and any communication connector. A supplier photograph can help identify a layout, but it does not replace a dimensioned drawing with a revision number.
For a replacement project, compare the actual installation envelope with the proposed model. Do not assume that a similar capacity or familiar rectangular shape means an interchangeable fit. Check the retention arrangement and handling method as well as the nominal length, width and height. The approved installation needs to accommodate the actual delivered configuration.
Where weight matters, request both net battery weight and packaged shipping weight. These answer different questions. Net weight matters to equipment design and handling; packaged weight matters to logistics. Ask for the measurement conditions and allowed variation if weight is an acceptance requirement, and verify a representative sample before freezing the equipment design.
The phrase “12V battery” often identifies a system class rather than an exact constant operating voltage. For a pack specified at 12.8V nominal and 50Ah, the nominal-energy calculation is straightforward: 12.8V × 50Ah = 640Wh. Multiplying the rounded 12V class name by 50Ah instead gives 600Wh, which uses a different voltage assumption.
Neither calculation means that terminal voltage stays fixed throughout operation. Equipment must tolerate the battery's specified operating-voltage window, and charging equipment must follow the approved profile. Obtain those limits from the current pack documentation. Do not set a charger from the nominal voltage printed in an article or inferred from a capacity calculation.
Ampere-hours and watt-hours also answer different questions. Ampere-hours express charge capacity under stated conditions; watt-hours help compare energy requirements. For a purchase decision, ask what test conditions support the capacity claim, including current, temperature, starting condition and discharge endpoint. A number without its method is difficult to compare with another quotation.
A useful first estimate is runtime in hours = nominal energy × available-energy fraction × conversion efficiency ÷ load power. This is planning arithmetic. The actual result depends on the equipment, operating conditions and battery configuration, and must be verified with the representative system. Do not present a calculated runtime as a measured product result.

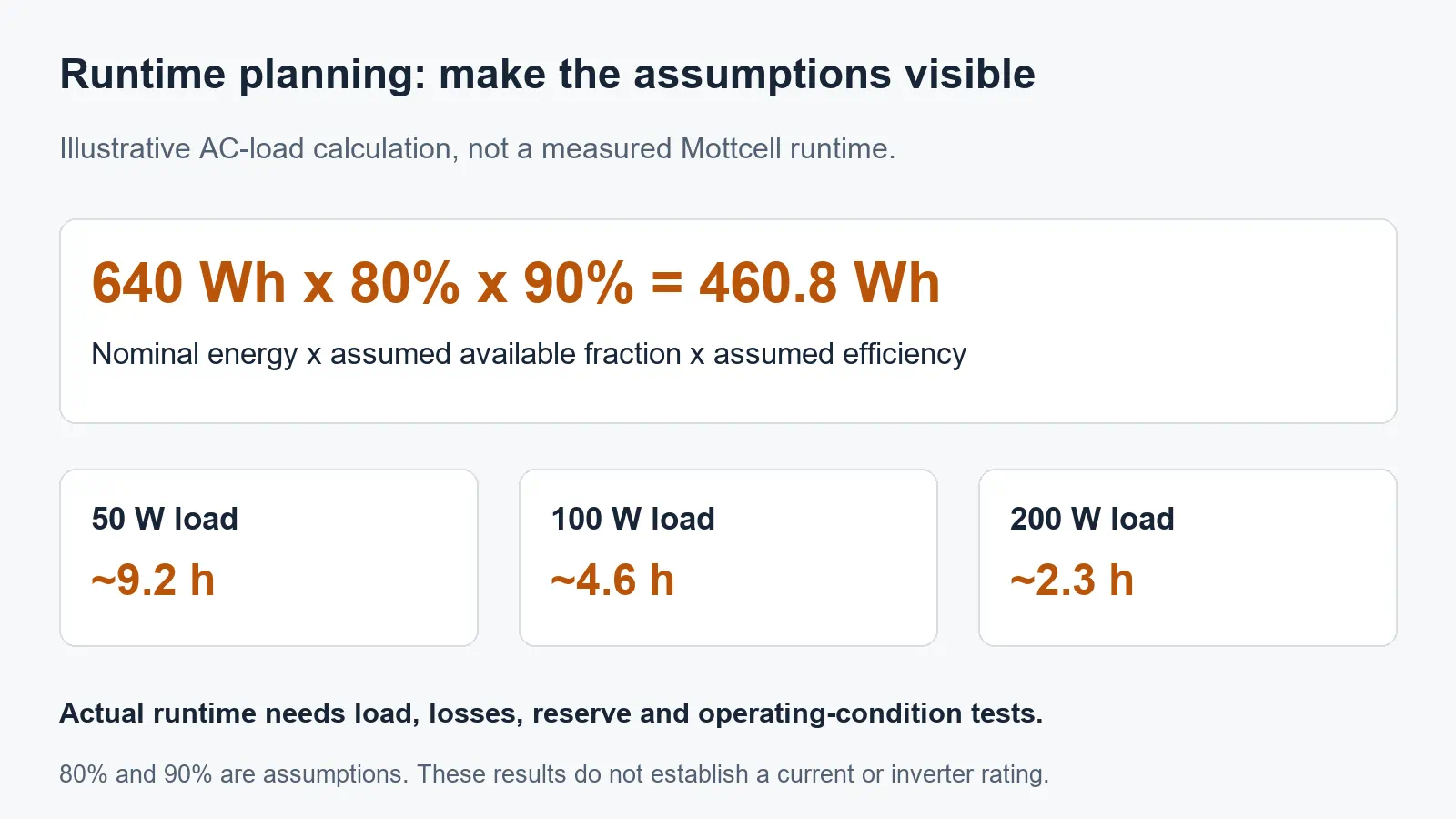

For illustration only, assume 640Wh nominal energy, an 80% available-energy fraction and 90% conversion efficiency for an AC load. The energy allocated to that load is 640 × 0.80 × 0.90 = 460.8Wh. At a constant 100W load, the calculation gives 4.608 hours, or approximately 4.6 hours. The 80% and 90% figures are assumptions, not specifications of SMG1250BE or SMG1250PLUS.
Under those same simplified assumptions, a constant 50W load gives approximately 9.2 hours, while a constant 200W load gives approximately 2.3 hours. These examples show why the load matters as much as the capacity label. They do not establish acceptable current, thermal behavior or inverter compatibility for either product.
Real systems may have standby consumption, varying conversion efficiency and intermittent loads. If those losses are not already included in the efficiency assumption, include them separately in the energy budget. For a direct DC application, use the actual DC conversion path rather than automatically carrying over the 90% AC example. Avoid counting the same loss twice.

For equipment that changes modes, calculate each interval before adding the total. As a separate hypothetical example, a controller consuming 30W for four hours requires 120Wh, and an accessory consuming 10W during those same four hours requires another 40Wh. The useful-load demand is therefore 160Wh before applying the chosen reserve and conversion assumptions. Keep the calculation alongside the load measurement so it can be updated when the equipment changes.
Mottcell's table lists a 50A maximum continuous operating current for both models and a separate 100A instantaneous-current entry with a 3–5-second heading. These are different categories. An instantaneous value is not permission to draw that current continuously, and it should not be treated as an engine-starting rating or proof that every motor load will operate successfully.
At 12.8V nominal, multiplying 50A by voltage gives 640W as simple electrical arithmetic. That is not an approved AC inverter-output rating. Battery voltage changes, converters draw losses, and operating conditions may affect the allowable load. The battery, wiring, protection and conversion equipment must be reviewed as one system by the responsible engineer.
Request the supplier's applicable continuous and transient conditions, including any temperature restrictions and recovery behavior after a protective shutdown. Ask how startup demand was characterized in the proposed application. A device that repeatedly trips protection can fail its functional requirement even if its average power is modest.
BMS options also require precise definitions. The catalog's “hardware” and “software” descriptions alone do not prove Bluetooth, CAN, RS485, remote monitoring or compatibility with a particular inverter. Specify each required interface and request the corresponding protocol, connector and supported-function documentation. Do not purchase an option by label alone.
The product table shows a recommended charging-current entry of 0.5C. For a 50Ah capacity, 0.5 × 50 gives 25A. This translation explains the notation; it is not a complete charging instruction. Voltage limits, permitted temperature, termination behavior and other operating restrictions must come from the approved documentation for the supplied pack.

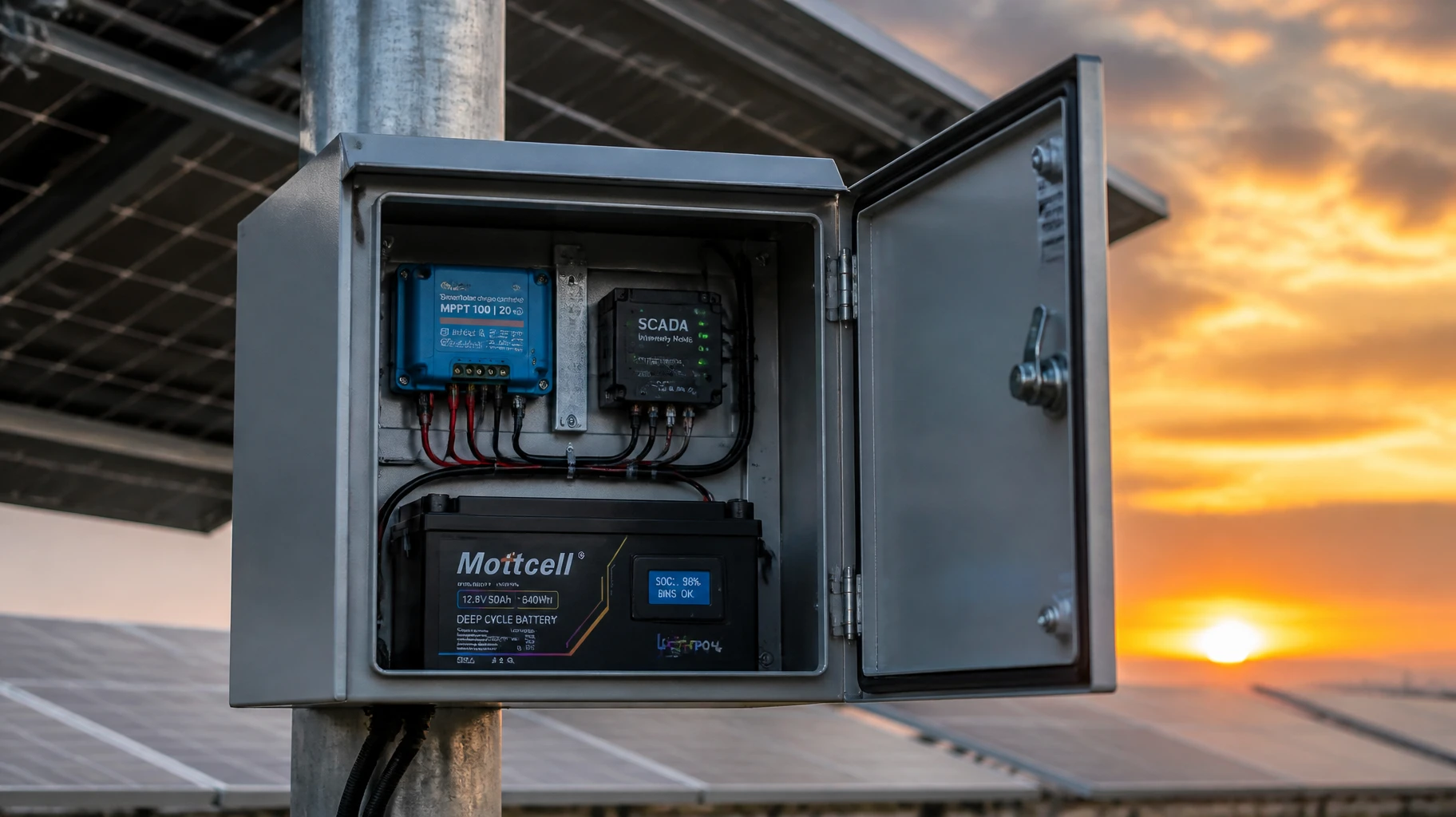

For a solar installation, provide the charge-controller model, available charging power and expected daily energy balance. A battery can have enough nominal storage for one operating interval but still fail the application if the charging opportunity cannot replenish the energy used. Seasonal conditions and shading belong in the system design, not in an unsupported battery-runtime promise.
For a lead-acid replacement, have the charger profile and equipment behavior checked rather than assuming a drop-in substitution. Existing equalization functions, voltage thresholds and state-of-charge displays may have been designed for another chemistry. Approval should cover the actual charger and equipment combination, not merely the fact that both products are marketed for a 12V system.
If more than one pack is proposed, request written confirmation of the permitted arrangement and its installation requirements. Do not infer permission for series or parallel connection from a single-pack capacity table. The application engineer should evaluate protection coordination, connection design and service procedures for the proposed system before it is assembled.
An effective RFQ connects the commercial offer to a defined technical item. Start with the proposed model, required quantity and application, then identify mandatory features and documents. Separate confirmed requirements from preferences. This lets suppliers state what is included, what is optional and what still requires engineering review.
| RFQ or approval item | Information to request | Why it matters |
|---|---|---|
| Product identity | Exact model, configuration and drawing revision | Keeps quotations and samples comparable |
| Load and autonomy | Voltage window, steady load, transient demand and required hours | Connects capacity to the actual application |
| Mechanical fit | Maximum envelope, terminal layout, mounting and weight | Checks installation and handling requirements |
| Charging and BMS | Approved charging profile, protections and specified interfaces | Avoids assumptions based on option names |
| Capacity evidence | Test method, conditions and acceptance criteria | Makes a rated value verifiable |
| Logistics documents | Applicable model-specific transport records and packaging details | Supports review of the planned shipment |
| Commercial scope | Sample terms, production quantity, delivery and warranty terms | Clarifies what the quoted price covers |
| Change control | Notification process for cell, BMS, housing or firmware changes | Preserves the approved configuration |
Request a response against each item rather than accepting a general claim that the product is “industrial grade.” If an item is not available, record it as an open question. A visible exception is easier to resolve before an order than an assumption discovered during installation. Keep the final agreed specification with the purchase order and sample-approval record.
For the wider supplier-review process, see the 12V battery pack manufacturing and OEM guide. Use it as a purchasing checklist, while retaining the exact 50Ah model and configuration in the technical agreement.
Transport evidence should identify the battery design being supplied. PHMSA's lithium battery test-summary guidance explains the role of UN 38.3 test summaries. Ask the supplier for the relevant document and check that its identifying information corresponds to the proposed battery. A generic document for an unrelated cell or pack does not establish the status of your order.
Keep transport documentation separate from claims about application safety, lifetime or charger compatibility. Each claim needs evidence appropriate to its scope. If a customer specification requests a particular certification, ask for the certificate or report and confirm the model, configuration and scope. This guide does not assert that either 50Ah model holds a particular certification.
Similarly, request conditions behind any cycle-life or warranty statement. Charge and discharge conditions, temperature, capacity-retention criteria and exclusions can change the meaning of a headline number. Record the terms actually offered for the configured product. Do not reuse a lifetime figure from another capacity, chemistry or article to fill a gap in the quotation.
Before samples are ordered, agree what the evaluation must demonstrate and who will perform it. Start with identity checks: model label, serial or lot reference, dimensions, terminal arrangement and included documents. Confirm that the delivered sample corresponds to the quoted configuration. Keep photographs and measurements attached to that sample's record.
Then evaluate operation with the intended equipment under agreed conditions. Record the load profile, charging setup, temperature and termination conditions alongside results. A runtime result without these details may be difficult to reproduce or use for production acceptance. Any capacity or protective-function testing should follow an appropriate approved procedure with qualified personnel and suitable equipment.
Record deviations explicitly. For example, if a sample fits the compartment but its connector orientation prevents service access, that is a mechanical exception requiring resolution. If a proposed BMS option lacks the required status output, that is a configuration gap. Do not allow a successful basic power-on test to close unrelated requirements.
After approval, identify the accepted configuration and the change-notification process. A later change in cell source, BMS settings, terminal design or housing can affect the original evaluation. Agree which changes require notification or renewed review, and keep the sample reference linked to the first production shipment. This creates a clearer basis for incoming inspection and future repeat orders.
A 50Ah option is worth evaluating when its documented voltage, current, usable-energy performance and physical envelope meet the equipment requirement. If the runtime calculation is already marginal before realistic losses and reserve are included, investigate another capacity or a different system design. A larger label alone still does not resolve an unsuitable voltage window or a peak-current problem.
Compare options against the same requirement and test conditions. Avoid selecting solely on price per ampere-hour when the quotations include different BMS functions, connectors, documents or acceptance work. Identify the technical differences first, then compare the commercial scope of equivalent proposals. This is more useful than assigning a speculative return-on-investment figure to an unverified design.
To start a model-specific discussion, contact Mottcell with the equipment type, required autonomy, measured load, installation envelope, charger model and target quantity. Reference SMG1250BE or SMG1250PLUS if either published enclosure appears suitable. Request the current drawing, weight, configuration details and sample terms before committing the equipment design.
For a 640Wh nominal pack, an illustrative calculation using 80% available energy and 90% conversion efficiency gives about 4.6 hours. Those percentages are assumptions, not confirmed performance values for the listed models. Actual runtime needs the load profile, converter consumption, temperature, reserve and approved discharge conditions, followed by testing of the representative system.
The published table lists SMG1250BE at 197 × 132 × 175mm and SMG1250PLUS at 196 × 167 × 170mm, in length × width × height order. It does not specify their weights in those rows. Ask for the current model-specific net weight, terminal-inclusive drawing and installation clearances rather than borrowing values from another battery.
Request an identified configuration, controlled drawing, capacity-test conditions, approved charging information, BMS functions, applicable transport documentation and written commercial terms. Provide the intended load and installation requirements so the supplier can review suitability. Agree sample-acceptance criteria and change control before production approval; a catalog listing alone does not close those decisions.
Editorial basis: Published Mottcell product-table values were checked on October 29, 2026. Calculations and procurement workflows are explanatory guidance, not measured model tests. This page does not claim a completed factory audit, independent certification review or verified compatibility with a particular charger, inverter or application.
