Top HESS 100kwh Supplier for Factory Energy Resilience

In the modern commercial and industrial (C&I) manufacturing sector, plant directors, facility engineers, and B2B procurement managers face unprecedented power supply challenges. Rapid industrial expansion, heavy motor startup currents, automated robotics, and continuous thermal processing strain existing local power grids. When utility grids experience power quality degradation, frequency instabilities, or sudden outages, manufacturing operations suffer severe consequences. A unexpected grid failure can lock up automated assembly lines, corrupt Programmable Logic Controller (PLC) firmware, damage sensitive production tooling, and cause costly material waste.

Furthermore, utility companies worldwide continue to raise commercial electricity rates and impose high "demand charges" based on a facility's peak electricity usage. To protect profitability and ensure operational continuity, forward-thinking enterprises are moving away from total reliance on the utility grid. Instead, they are installing active, high-capacity Commercial & Industrial (C&I) Energy Storage Systems (ESS).

Among the industrial power solutions driving this energy shift, the 100kWh outdoor energy storage cabinet has established itself as the baseline building block for factory power buffering. Delivering 100 kWh of usable energy capacity within an integrated, weather-sealed enclosure, a 100kWh unit provides the necessary power density to handle heavy industrial loads, execute peak-shaving routines, and support solar microgrid arrays.

To achieve long-term power resilience and maximize return on investment (ROI), factory procurement managers must partner with an authoritative HESS 100kwh supplier. Choosing a direct manufacturing partner like Mottcell ensures that cell chemistry, liquid or air thermal management, high-voltage battery management systems (BMS), and Energy Management System (EMS) software are specifically calibrated for demanding industrial floor environments.

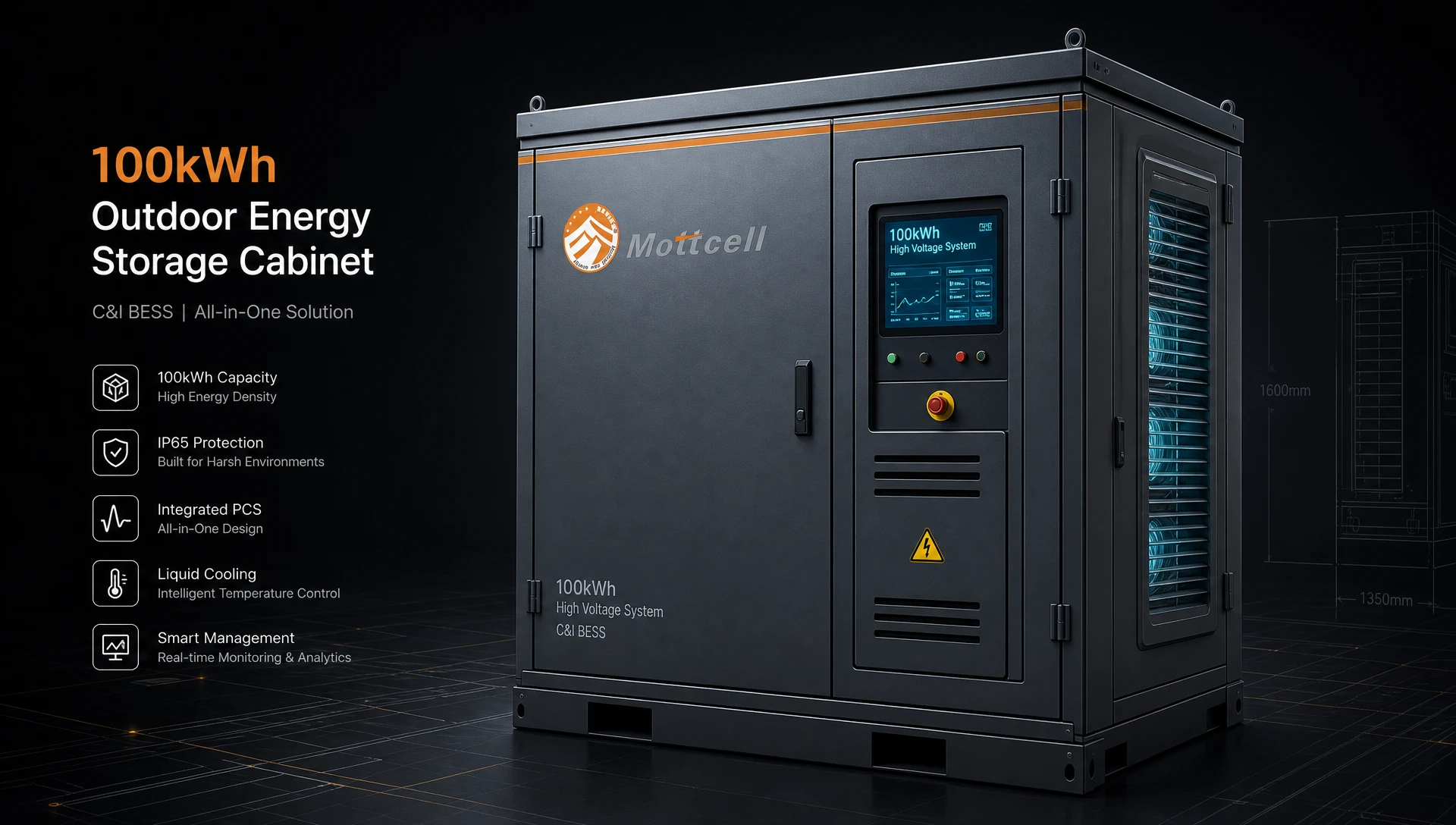

1. Technical Architecture: Inside a 100kWh Industrial Energy Storage Cabinet

To make informed B2B procurement decisions, engineering teams must understand the technical differences between small rack-mounted battery modules (such as 5kWh to 15kWh low-voltage packs) and a turn-key 100kWh C&I energy storage cabinet. A 100kWh storage system is not simply a larger battery; it is a complete, self-contained power generation and control node.

High-Voltage Architecture for Maximum System Efficiency

Unlike low-voltage 48V or 51.2V systems designed for residential or light commercial applications, an industrial 100kWh storage cabinet operates on a high-voltage DC busbar architecture, typically ranging from 600V to 800V DC.

Operating at a high DC voltage offers critical engineering benefits for industrial facilities:

• Minimized Power Losses: Higher operating voltages reduce the continuous current required to deliver equivalent power outputs (Power = Voltage x Current). Lowering current draw minimizes resistive heat losses across internal copper busbars and main power lines.

• Higher Round-Trip Efficiency (RTE): High-voltage battery systems match the DC input requirements of industrial Power Conversion Systems (PCS) and commercial inverters, achieving round-trip efficiency ratings above 90%.

• Faster Power Response: High-voltage clusters deliver rapid power discharge within milliseconds, providing reliable emergency backup during sudden grid voltage sags.

Advanced Thermal Management: Liquid-Cooling vs. HVAC Air-Cooling

Thermal stability is critical to the safety and lifespan of a 100kWh industrial battery system. When a 100kWh battery discharges rapidly to support heavy machinery, internal cell temperatures rise.

As an authoritative HESS 100kwh factory, Mottcell designs 100kWh cabinets with advanced thermal management options:

• Smart HVAC Air Cooling: Utilizes industrial-grade air conditioning units mounted on the cabinet wall to maintain uniform internal temperatures between 20°C and 25°C, providing reliable cooling for standard commercial operations.

• Advanced Liquid Cooling: Circulates specialized coolant directly through cold plates sandwiched between Grade-A prismatic LiFePO4 cells. Liquid cooling maintains cell-to-cell temperature variations within 2°C, reducing cooling energy consumption by up to 30% and extending battery cycle life by over 20% under heavy discharge conditions.

Integrated Safety and Multi-Stage Fire Suppression

Industrial safety standards require high-capacity energy storage systems to feature comprehensive safety protection. Mottcell 100kWh industrial cabinets integrate multi-level fire protection systems, including cell-level thermal sensors, combustible gas detectors, and automated aerosol or FM200 fire suppression units. If a thermal anomaly is detected, the system automatically isolates the battery cluster and deploys suppression agents within seconds to protect plant assets.

2. Financial Economics: Avoiding Transformer Upgrades and Reducing Peak Surcharges

For plant financial officers and operations directors, investing in a 100kWh energy storage cabinet offers clear financial benefits beyond simple emergency backup. Sourcing a HESS 100kwh with cost-effective lifecycle performance provides a proven tool for controlling commercial utility expenses.

Deferring Utility Transformer Upgrades (CapEx Savings)

When a manufacturing facility expands production by adding new CNC machinery, automated welding lines, or industrial chillers, total facility power demand often exceeds the rated capacity of the existing utility transformer.

Utility companies typically charge hundreds of thousands of dollars to upgrade commercial transformers and high-voltage supply lines—a process that can take 6 to 18 months in permitting and construction delays.

By installing a 100kWh energy storage cabinet, plant managers can implement "grid booster" functionality. The storage cabinet buffers load spikes locally, supplying extra power during peak equipment operation without exceeding transformer limits. This allows facilities to expand production capacity immediately while avoiding expensive transformer upgrade fees.

Commercial Peak Shaving and Tariff Arbitrage

Utility providers charge commercial customers using time-of-use (TOU) rate structures, where electricity costs significantly more during peak business hours. Additionally, utilities impose monthly "demand charges" calculated from a facility's single highest 15-minute power peak.

An automated 100kWh storage system manages these tariffs through two primary strategies:

• Peak Shaving: The EMS monitors real-time facility power draw. When machinery usage approaches peak demand thresholds, the 100kWh cabinet discharges power locally, shaving the peak and lowering monthly demand charges.

• Energy Arbitrage: The system automatically charges its battery cells during cheap off-peak nighttime hours and discharges stored energy during expensive peak afternoon hours, lowering overall electricity costs.

3. High-Yield Solar Integration: HESS 100kwh for Solar System Microgrids

Industrial rooftop solar installations offer a practical way for factories to generate clean energy. However, solar PV generation fluctuates with cloud cover and peaks during midday hours when facility power demand may not match generation. Without energy storage, excess solar energy is fed back into the electrical grid at low feed-in tariffs or curtailed entirely.

Connecting a HESS 100kwh for solar system deployment turns a passive solar array into a controllable commercial microgrid.

Integrating a 100kWh storage cabinet into a factory solar system provides key operational advantages:

• Maximizing Solar Self-Consumption: Stores excess midday solar generation directly into the 100kWh battery bank instead of exporting it to the grid, ensuring clean solar energy is used during peak operational hours.

• Smoothing Solar Intermittency: Absorbs sudden power fluctuations caused by passing clouds, providing stable, regulated power to sensitive factory machinery.

• Off-Grid Operational Continuity: During grid blackouts, the 100kWh cabinet works with the solar array to maintain an isolated microgrid, keeping critical production lines running indefinitely during daylight hours.

For facilities seeking simplified installation, choosing an integrated all-in-one energy storage system architecture combines the high-voltage battery bank, PCS inverter, and EMS controls into a single pre-tested outdoor cabinet, reducing field wiring complexity and installation time.

4. Engineering Customization for Global Industrial Deployments

Commercial manufacturing environments vary widely across industries. A chemical processing plant in a coastal zone presents vastly different environmental challenges than a high-dust textile mill or a freezing cold-storage warehouse. Recognizing these operational demands, Mottcell excels in delivering a customized 100kwh HESS designed for specialized industrial applications.

Customization options available from our HESS 100kwh factory include:

• Custom Enclosures and Environmental Protection: We supply custom cabinets built from C4/C5 anti-corrosion treated steel or aluminum, with protection ratings up to IP65 for harsh coastal or high-dust outdoor environments.

• SCADA and EMS Protocol Integration: Our engineering team configures BMS and EMS communication registers to match factory SCADA systems using Modbus TCP, CANbus, or IEC 61850 protocols, enabling real-time remote monitoring and automated control.

• Tailored Power Conversion (PCS) Sizing: Depending on your facility's load profile, we customize the internal PCS inverter sizing (e.g., 50kW PCS for 2-hour duration or 100kW PCS for 1-hour high-power discharge) to optimize system performance for your specific application.

For specialized industrial projects requiring unique spatial footprints or custom container layouts, our engineering team designs bespoke solutions through our customized energy storage division.

5. Comparative Series Matrix: Product Strategy for Procurement

To help procurement managers select the right system capacity and voltage platform for their operational scale, Mottcell manufactures a complete line of energy storage products. Evaluating your facility requirements against our comprehensive energy storage system portfolio ensures proper equipment sizing and long-term capital efficiency:

Technical Framework and Product Series Evaluation Matrix

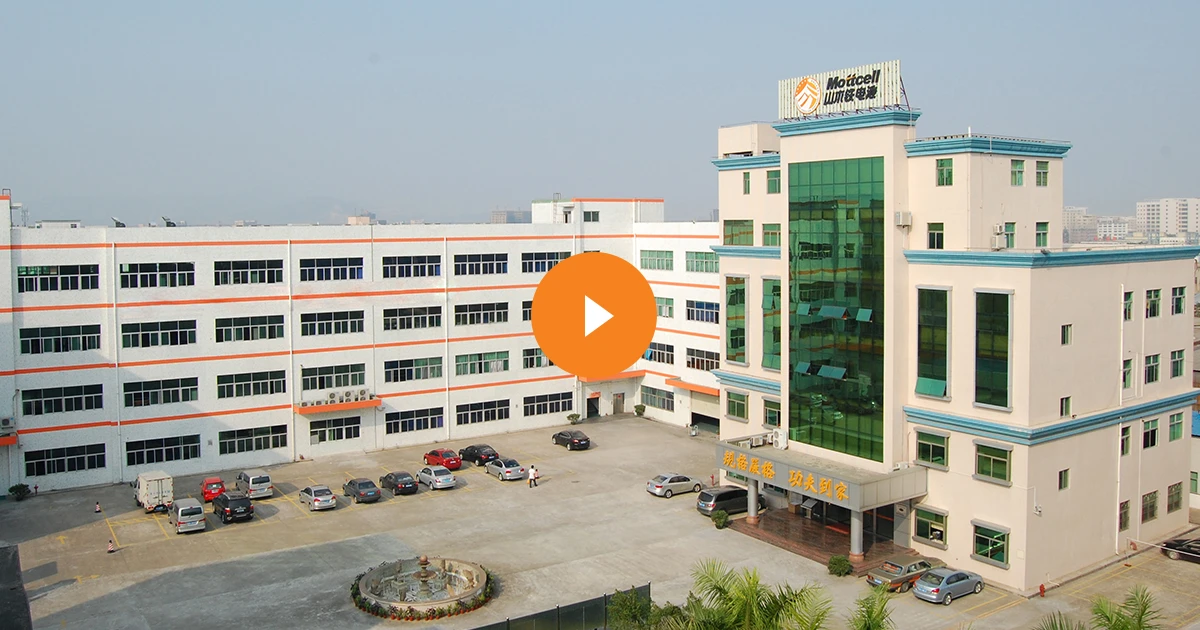

6. Manufacturing Quality Control at the Mottcell Factory Core

Sourcing a 100kWh C&I energy storage cabinet from general trading company intermediaries introduces significant operational risks. A 100kWh system houses hundreds of large-format prismatic LiFePO4 cells operating in high-voltage series clusters. If individual cells exhibit minor variations in open-circuit voltage (OCV) or internal resistance (IR), the battery cluster will quickly suffer capacity divergence under continuous heavy usage.

As an audited HESS 100kwh supplier, Mottcell enforces strict quality control across every manufacturing stage:

• Computerized Cell Sorting: 100% of incoming Grade-A prismatic cells undergo automated OCV and IR testing, matching cells within microscopic tolerances before pack assembly.

• Robotic Laser Fusion Welding: Busbar connections are joined using automated robotic laser welding, creating permanent metallurgical bonds that resist mechanical stress and factory floor vibrations.

• Full-Load Factory Acceptance Testing (FAT): Every 100kWh cabinet undergoes full-power charge and discharge testing at our factory, verifying PCS conversion efficiency, thermal management response, and safety shutdown systems before shipping.

7. Industrial Sourcing FAQs

Q1: What safety certifications are required for an outdoor 100kWh energy storage cabinet?

Industrial 100kWh energy storage cabinets must comply with international safety standards, including UL9540, UL9540A (thermal runaway propagation testing), IEC 62619, CE, and UN38.3. Mottcell's 100kWh industrial cabinets hold comprehensive international safety certifications, simplifying local permitting and utility interconnection approval.

Q2: How does a 100kWh HESS prevent expensive utility transformer upgrades?

When a factory adds new equipment, total power demand can exceed the local transformer rating. A 100kWh HESS acts as a power buffer, discharging energy locally during peak demand periods so the power drawn from the utility grid stays within transformer limits. This "peak shaving" defers or eliminates the need for expensive utility transformer upgrades.

Q3: Can multiple 100kWh storage cabinets be connected in parallel for larger capacity requirements?

Yes. Mottcell 100kWh storage cabinets feature modular master-slave control logic that allows up to 10 cabinets to be parallelized on a single DC bus, creating 1MWh+ commercial microgrids. Integrated EMS software automatically manages power distribution across all connected cabinets to maintain balanced operating conditions.

Conclusion: Partner with a Trusted Authority in Industrial Energy Storage

Selecting a commercial-grade 100kWh energy storage system is a strategic operational decision that directly impacts your facility's power reliability, energy costs, and production continuity. By partnering directly with an audited HESS 100kwh supplier, you eliminate technical integration risks, secure your supply chain, and maximize long-term investment returns.

Mottcell combines advanced electrochemistry expertise, automated laser welding manufacturing, and flexible OEM/ODM engineering to deliver reliable energy storage solutions worldwide. Ready to eliminate facility power risks, reduce utility demand charges, and receive a customized manufacturing quote for your facility? Please contact Mottcell's factory inquiry team today to secure a tailored energy storage proposal optimized for your technical requirements.
